Piper Pro-1 Square Up/Down Wall Light 10W IP65 5CCT E27 Domus

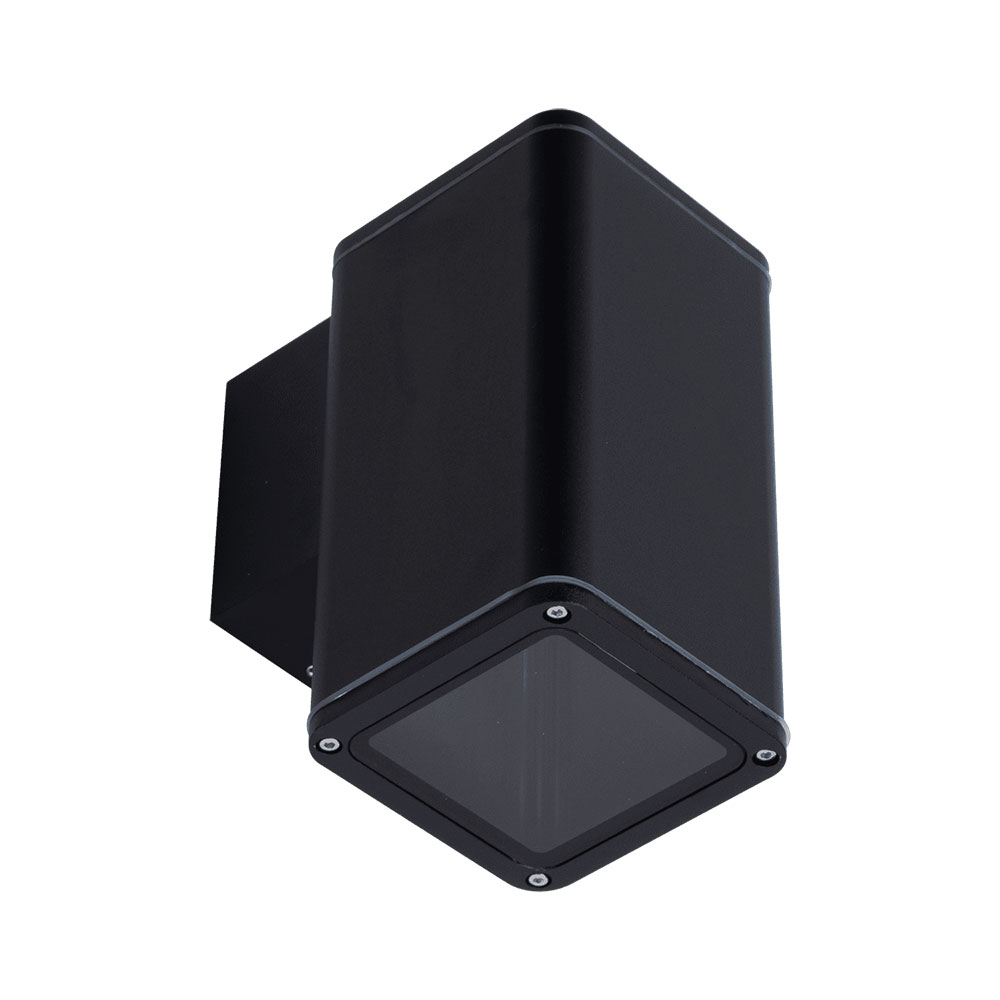

Domus Piper Pro-1 square exterior LED wall light, 10W PAR30 E27, tri-colour 3000/4000/5000K, IP65, IK08, die-cast aluminium.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Piper Pro-1 Square Wall Light, PIPER-PRO-1-SQR, Square Outdoor LED Wall Light, E27 PAR30 Wall Light
Technical Specifications
- Input Voltage: 240V AC
- Power: 10W LED
- Lamp Base: E27
- Lamp Type: PAR30 LED lamp
- Colour Temperature: 3000K / 4000K / 5000K switchable
- Lumen Output: 900 lm at 3000K; 1000 lm at 4000K; 950 lm at 5000K
- Colour Rendering: CRI ≥80
- Ingress Protection: IP65
- Impact Protection: IK08
- Material: Die-cast aluminium frame with tempered clear lens
- Finish: Textured black or white powder coat
- Light Distribution: Downward illumination
- Product Variants: 49300 black; 49301 white
- Dimensions (H x L x W): 192mm x 171mm x 108mm
- Weight: 1.2 kg
Key Features
- Square exterior wall light design for residential and commercial applications
- Tri-colour switching between warm white, neutral white and white light
- Durable die-cast aluminium construction
- Solid tempered clear lens for improved impact resistance
- IP65 protection against dust and water jets
- IK08 impact protection rating
- Uses a replaceable PAR30 E27 LED lamp
- Suitable for indoor and outdoor applications
- RCM mark shown on the manufacturer datasheet
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Confirm the fitting is installed in a location suitable for its IP65 rating.
Applications
- Exterior walls and building facades
- Residential entrances, porches and balconies
- Commercial premises and hospitality buildings
- Covered outdoor entertaining areas
- Indoor feature and accent lighting
- Pathways, courtyards and architectural wall illumination
Standards & Compliance
- AS/NZS 60598.1:2017 for general requirements and tests for luminaires
- AS/NZS 60598.2.1:2014, including applicable amendments, for fixed general-purpose luminaires
- AS/NZS 3000 for electrical installation and wiring requirements
- RCM marking shown on the manufacturer datasheet
Environmental Benefits
- LED light source provides lower energy consumption than equivalent halogen lighting
- Switchable colour temperature supports appropriate lighting selection without replacing the fitting
- Die-cast aluminium components are recyclable at end of service life
- Replaceable E27 lamp can extend fitting service life and reduce whole-unit replacement waste
- Durable IP65 and IK08 construction can reduce premature replacement in outdoor environments
Warranty Information
3-year replacement warranty for residential exterior LED wall lights and 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions. Installation by a licensed electrician is required.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors; colour and stock availability may vary by distributor.
