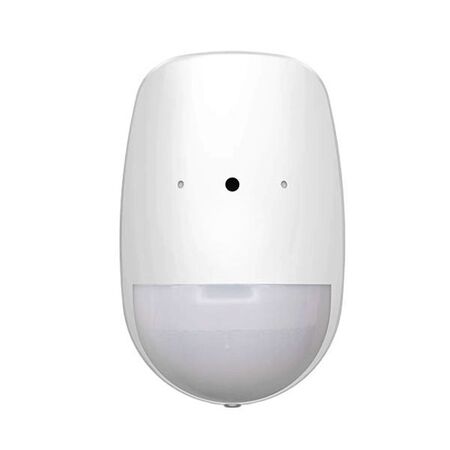

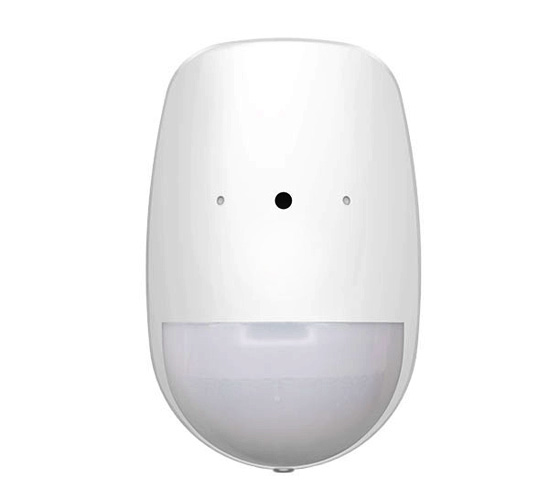

PIR and Glassbreak Detector AX PRO Hikvision
Hikvision AX PRO detector combines PIR motion and glassbreak detection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-PDPG12P-EG2-WB, AX PRO PIR-Glass Break Detector, Wireless Motion and Glassbreak Sensor
Technical Specifications
- Model: DS-PDPG12P-EG2-WB
- Detection Method: Passive infrared and acoustic glassbreak sensing
- PIR Detection Range: 12 m
- PIR Detection Angle: 85.9°
- Glassbreak Detection Range: 8 m radius
- Glass Types: Float, plate, tempered, wired, laminated, leaded and double glazing
- Glass Thickness: 2.4–6.4 mm
- Glass Size: 0.3 m × 0.3 m to 3 m × 3 m
- Pet Immunity: Up to 30 kg for pets below 40 cm height
- Detection Zones: 52
- Wireless Technology: Tri-X two-way RF wireless
- Transmission Frequency: 433 MHz
- Wireless Range: Up to 1 km in open space
- Transmission Security: AES-128 encryption
- Battery: 2 × CR123A lithium batteries
- Battery Life: Up to 4 years in standby
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10–90% RH
- Installation Height: 1.8–2.4 m
- Mounting: Indoor wall mounting; optional wall and ceiling brackets available
- Dimensions (H x L x W): 103mm x 65.5mm x 48.5mm
- Weight: 0.134 kg
Key Features
- Combines PIR motion detection and acoustic glassbreak detection in one wireless detector
- 12 m PIR coverage with an 85.9° detection angle
- 8 m glassbreak detection radius with selectable sensitivity distances
- Up to 30 kg pet immunity
- Digital temperature compensation and digital signal processing
- Front and rear tamper protection
- Creep-zone protection and sealed optics
- LED status indication for PIR, glassbreak and alarm events
- Two-way Tri-X wireless communication with AES-128 encryption
- Supports power-up, remote ID and QR-code enrolment
Professional Installation Requirements
- Installation and commissioning should be performed by a qualified security alarm installer. Position the detector indoors at 1.8–2.4 m mounting height, verify wireless signal strength and test both PIR and glassbreak functions after enrolment.
Applications
- Residential intruder alarm systems
- Retail shops and commercial premises
- Offices and small business security systems
- Rooms requiring combined motion and window protection
- AX PRO wireless alarm installations
Standards & Compliance
- AS 2201.3-1991: Intruder alarm systems—Detection devices for internal use is the relevant Australian category standard for internal alarm detectors; manufacturer-specific compliance for this model was not independently confirmed.
- Australian installations should also use equipment approved for applicable Australian radio and electrical regulatory requirements, including RCM requirements where applicable.
Environmental Benefits
- Wireless installation can reduce the need for additional signal cabling and associated installation materials
- Low-power operation and up to four years of standby battery life can reduce battery replacement frequency
- Digital temperature compensation and sealed optics support dependable operation and extended service life
- Replaceable batteries and a durable enclosure can help reduce premature product replacement
Warranty Information
Hikvision AX PRO alarm products are commonly listed by Australian distributors with a 3-year manufacturer warranty. Warranty eligibility may depend on purchase through an authorised Australian distributor; confirm the applicable terms at purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional model and frequency availability.
