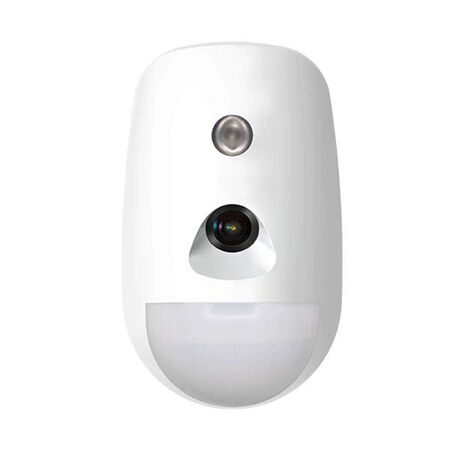

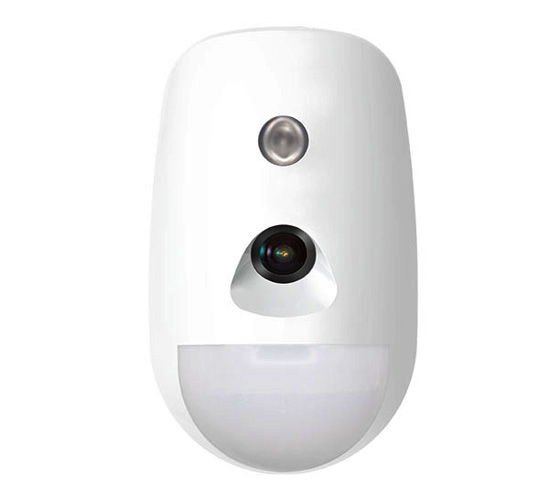

PIR Camera Whitelight Version B AX PRO Hikvision
Hikvision AX PRO PIR camera, revision B, features motion detection and a whitelight. Ideal for alarm systems with visual verification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PIRCAM, AX PRO Wireless PIR-Camera Detector, DS-PDPC12P-EG2-WB(B)
Technical Specifications
- Detection Method: Passive infrared and video verification
- Detection Range: 12 m
- Detection Angle: 85.9°
- Detection Zones: 52
- Detectable Speed: 0.3–2 m/s
- Sensitivity: Automatic, high and pet modes
- Pet Immunity: Up to 30 kg
- White-Light Filter: 6500 lux
- Camera Field of View: 88.4° horizontal, 68.0° vertical
- Image Resolution: 640 × 480, 320 × 240 or 160 × 120 JPEG
- Night Illumination: Infrared, up to 12 m
- Wireless Technology: CAM-X two-way RF wireless
- Wireless Frequency: 433 MHz
- Wireless Transmission Range: Up to 800 m in free space
- Wireless Security: AES-128 encryption
- Power Supply: 3 × CR123A batteries
- Typical Voltage: 3 V
- Battery Life: Up to 6 years in standby
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Mounting Height: 1.8–2.4 m
- Mounting Method: Wall mounting
- Application: Indoor use
- Dimensions (H x L x W): 120.5mm x 56.7mm x 72.2mm
- Weight: 0.21 kg
Key Features
- Combines PIR motion detection with visual alarm verification
- White-light filtering rated to 6500 lux for improved detection stability
- Up to 30 kg pet immunity
- SEC Smart Environmental Control with digital processing and 3D optics
- Front and rear tamper protection
- Sealed optics and digital temperature compensation
- Remote configuration through the Hikvision app
- Multiple enrolment methods including power-up, remote ID and QR code
- Blue alarm LED and signal-strength indicator
- Optional wall and ceiling brackets available
Professional Installation Requirements
- Installation and commissioning should be performed by a qualified security-system installer. The detector must be enrolled with a compatible Hikvision AX PRO control panel and positioned at the recommended 1.8–2.4 m mounting height.
Applications
- Indoor residential intruder alarm systems
- Commercial security alarm systems
- AX PRO visual alarm verification
- Pet-friendly motion detection areas
- Remote security monitoring installations
Standards & Compliance
- AS 2201.3—1991: Intruder alarm systems—Detection devices for internal use; applicable category reference, with specific product conformity to be confirmed from the installation documentation.
Environmental Benefits
- Up to six-year standby battery life can reduce replacement frequency and battery waste
- Long service life and replaceable batteries may reduce electronic waste compared with frequent device replacement
- Wireless installation can reduce the need for additional signal cabling and associated installation materials
Warranty Information
Hikvision Australia’s RMA policy lists alarm wireless detectors with a 24-month warranty, subject to the applicable purchase terms, valid documentation and authorised distribution requirements.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to distributor stock.
