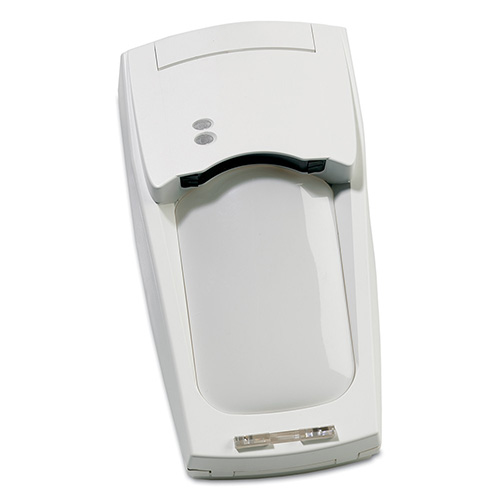

PIR Motion Detector 20m and 60m Anti-Masking High Density Optics Tecom
Tecom PIR motion detector features 20m and 60m ranges, anti-masking and high density optics. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VE735AM, Aritech VE735AM, Interlogix VE735AM, Long-Range PIR Detector, Anti-Masking PIR Sensor
Technical Specifications
- Detection Technology: Passive infrared (PIR)
- Detection Coverage: 11 curtains over 20 m plus one 60 m long-range curtain
- Coverage Angle: 86° at 20 m; approximately 3° at 60 m
- Anti-Masking: Multi-channel active infrared anti-masking
- Signal Processing: Vector Verified Enhanced (V2E)
- Operating Voltage: 9–15 V DC, 12 V nominal
- Current Consumption: Approximately 20 mA
- Alarm Output: Form C relay, 80 mA at 30 V DC maximum
- Tamper Protection: Cover and pry-off tamper
- Mounting Height: 1.8–3.0 m
- Operating Temperature: -10°C to +55°C
- Relative Humidity: Up to 95%, non-condensing
- Ingress Protection: IP30
- Security Grade: EN 50131-2-2 Grade 2/3, depending on configuration and approval
- Dimensions (H x L x W): 175mm x 93mm x 55mm
- Weight: 0.275 kg
Key Features
- Combined wide-angle volumetric and long-range detection
- Multi-channel anti-masking detects masking attempts close to the detector
- High-density Step & Gliding Focus mirror optics
- Full undercrawl protection
- Selectable detection range and anti-masking reporting/reset functions
- Three selectable alarm sensitivities
- Sealed optics reduce contamination-related performance issues
- Plug-in electronics simplify installation and servicing
- Vector-based processing helps distinguish intruder movement from nuisance thermal sources
- Cover and pry-off tamper protection
Professional Installation Requirements
- Installation, wiring and commissioning should be completed by a suitably qualified security installer. Connect to a compatible alarm control panel using the required 9–15 V DC supply and configure detection, tamper and anti-masking outputs in accordance with the installation instructions and applicable Australian requirements.
Applications
- Commercial intruder alarm systems
- Industrial and warehouse perimeter or corridor protection
- Long corridors, loading areas and large internal spaces
- High-security internal areas requiring anti-masking protection
- Integration with Tecom Challenger and compatible alarm control panels
Standards & Compliance
- Relevant product-category standard: AS 2201.3:1991, Intruder alarm systems—Detection devices for internal use
- Installation and commissioning context: AS/NZS 2201.1:2007, Intruder alarm systems—Client’s premises—Design, installation, commissioning and maintenance
- Manufacturer-specific Australian certification for the VE735AM configuration was not verified
Environmental Benefits
- Low-voltage, low-current operation helps minimise operating energy consumption
- Durable sealed optics and replaceable plug-in electronics can extend service life and reduce replacement waste
- Long-range coverage can reduce the number of detectors required in suitable large-area installations
Warranty Information
Carrier Fire & Security’s published warranty policy lists Tecom Challenger hardware with a 5-year warranty, subject to the applicable policy terms, product status and verification by the supplying distributor.
Available Now
Available through Tecom/Carrier Fire & Security channels and authorised Australian security-system distributors; confirm current stock and product status before ordering.
