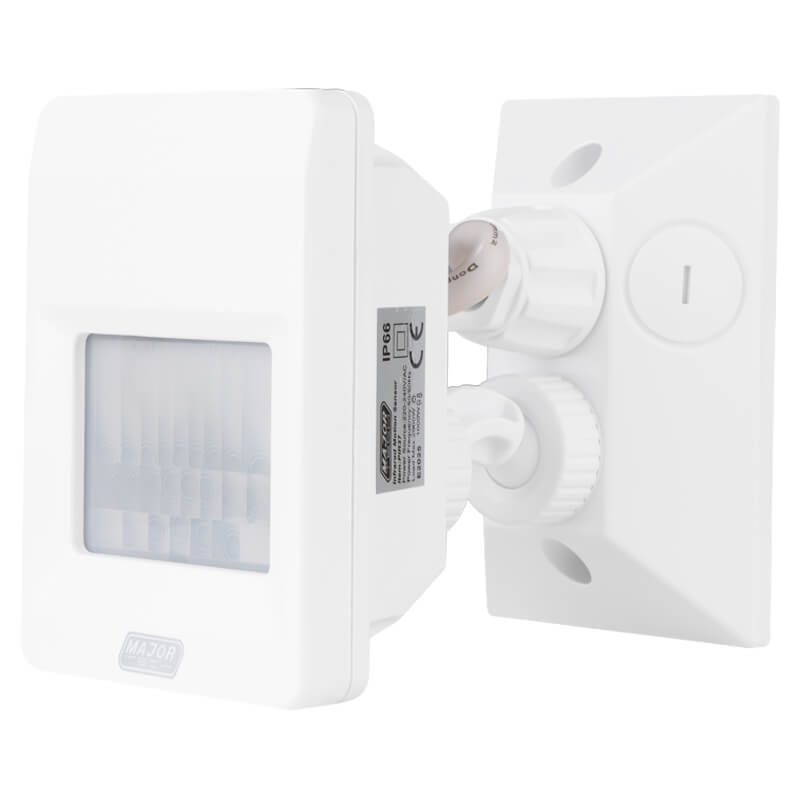

120° PIR Motion Sensor IP66 | Adjustable Detection Distance | Manual Override | Waterproof | by Majortech
The 120° PIR Motion Sensor IP66 is designed for efficient indoor and outdoor lighting control, featuring an adjustable detection distance of 6 to 18 meters and a manual override function. With its IP66 waterproof rating, this sensor is perfect for both residential and commercial applications, ensuring reliable performance in various environments while helping to reduce energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PIR Motion Detector, Passive Infrared Sensor, Motion Activated Sensor, Outdoor Motion Sensor
Technical Specifications
- Detection Angle: 120°
- Detection Distance: 6 - 18 meters (adjustable)
- Detection Motion Speed: 0.6 to 1.5 m/s
- Ambient Light Sensitivity: 3 to 2000 Lux (adjustable)
- Installation Height: 1.8 to 2.5 meters
- Voltage: 220 to 240V AC
- Power Frequency: 50/60Hz
- Rated Load: 2000W Incandescent, 1000W LED/CFL
- Time Delay: 10 seconds to 30 minutes (adjustable)
- Power Consumption: <0.5W
- Manual Override: Yes
- Swivel Head Adjustment: 100° left to right, 45° up/down
- Working Temperature: -20°C to 40°C
- Working Humidity: <93% RH
- IP Rating: IP66
- Dimensions (H x L x W): 90mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- 120° detection range with adjustable detection distance from 6 to 18 meters
- Adjustable time delay from 10 seconds to 30 minutes
- Manual override function for sensor mode or continuous on
- IP66 waterproof rating suitable for indoor and outdoor installations
- Swivel head with 100° left to right and 45° up/down adjustment
- Low power consumption of less than 0.5W
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure safety and compliance with electrical standards.
Applications
- Indoor and outdoor lighting control
- Automatic activation of electrical devices upon motion detection
- Ceiling or wall mounted sensor for residential and commercial use
Standards & Compliance
- AS/NZS 60669.1 – Switches for household and similar fixed electrical installations
- AS/NZS 60669.2.1 – Particular requirements for automatic electrical controls
Environmental Benefits
- Reduces energy consumption by automatically turning off lights when no motion is detected
- Helps lower electricity bills and carbon footprint through efficient lighting control
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech 120° PIR Motion Sensor IP66 is available for immediate purchase, ideal for enhancing security and energy efficiency in residential and commercial lighting systems.
