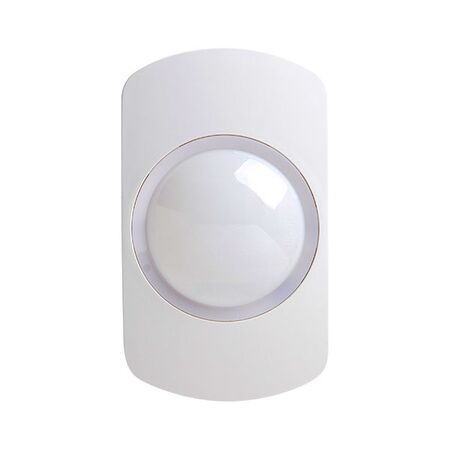

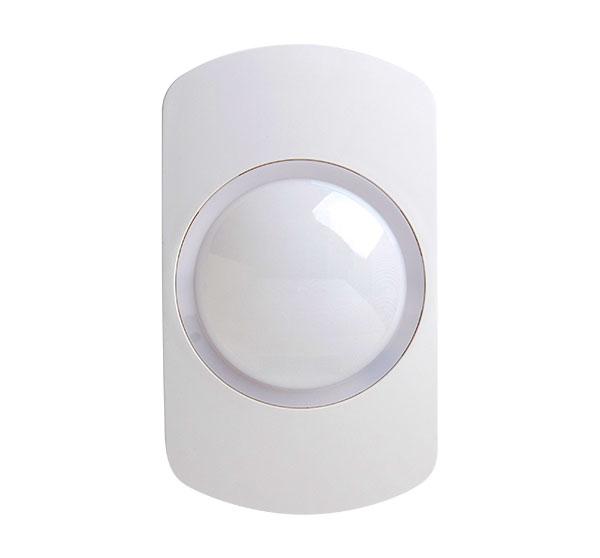

PIR Motion Sensor 15m 90 Degree Pet Immunity Tecom
Tecom PIR motion sensor features 15m range, 90 degree coverage, pet immunity and sealed electronics. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tecom PIR Detector, Tecom Intruder Alarm Motion Sensor, 15 m Pet-Immune PIR Sensor
Technical Specifications
- Detection Technology: Passive infrared (PIR)
- Detection Range: Up to 15 m
- Coverage Angle: 90°
- Pet Immunity: Selectable pet-immunity mode
- Sensing Element: Dual-element pyro
- Operating Voltage: 9–15 V DC, nominal 12 V DC
- Current Consumption: Approximately 9.3 mA quiescent; 12 mA maximum
- Operating Temperature: -10°C to +55°C
- Relative Humidity: 0–95% non-condensing
- Mounting: Wall mount; optional ceiling-mount configuration
- Mounting Height: 1.5–3 m
- Environment: Indoor
- Alarm Output: Normally closed solid-state relay
- Tamper Protection: Tamper switch
- Certification: EN 50131-2-2 Grade 2, where supplied as the corresponding Tecom/Guardall detector variant
- Dimensions (H x L x W): 112mm x 43mm x 65mm
- Weight: 0.106 kg
Key Features
- 15 m volumetric PIR detection
- 90° coverage for broad room protection
- Selectable pet-immunity function
- Fully sealed, front-loaded electronics
- Dual-element pyroelectric sensing
- Digital temperature compensation
- Active white-light rejection
- Flexible mounting points and adjustable terminal block
- Suitable for residential and commercial intruder alarm systems
Professional Installation Requirements
- Installation, wiring, commissioning and walk testing should be performed by a suitably qualified security technician in accordance with the alarm-system manufacturer's instructions and AS/NZS 2201.1:2007.
Applications
- Residential intruder alarm systems
- Commercial premises and offices
- Retail and hospitality security systems
- Indoor perimeter and room protection
- Tecom Challenger alarm installations
Standards & Compliance
- AS/NZS 2201.1:2007 is relevant to the design, installation, commissioning and maintenance of the completed intruder alarm system
- Product-level certification for the corresponding detector variant: EN 50131-2-2 Grade 2
Environmental Benefits
- Low-voltage operation supports efficient alarm-system power consumption
- Sealed electronics help protect the detector from dust and environmental contamination, potentially extending service life
- Durable construction can reduce replacement frequency and associated electronic waste
Warranty Information
Tecom hardware is generally covered by a 5-year manufacturer's warranty against defects, subject to the applicable supplier terms and conditions.
Available Now
Available through Tecom, Carrier Fire & Security and authorised Australian security-system distributors.
