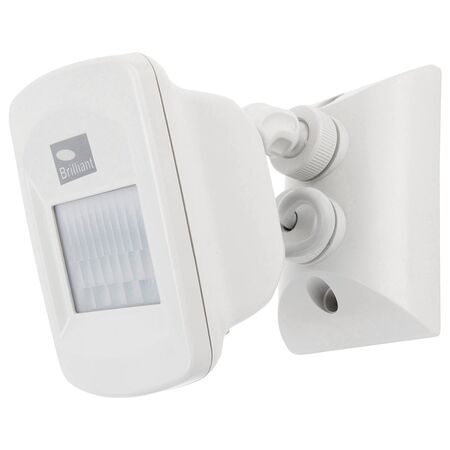

PIR Security Sensor | 18m Range & 110° Detection | IP66 Rated | Beige by Brilliant Lighting

SKU: 18562/09
$43.10 List price: $56.10
+
PIR security sensor with 18m range and 110° detection—ideal for residential and commercial security lighting. Built for energy efficiency, with IP66 rating and adjustable settings for optimal performance.

Product Name/Title: Brilliant Beige Flexiscan PIR Security Sensor (Series 2)

Brand: Brilliant Lighting

SKU: 18562/09

Alternatively Known As: PIR Motion Sensor, Flexiscan Sensor, Security Sensor

Technical Specifications
  • Construction: UV resistant Polycarbonate
  • Maximum load: 2400W Incandescent, 1200W Fluorescent, 300W LED
  • Operating voltage: 240V / 50Hz
  • Ingress protection: IP66
  • Class: Class II
  • Motion detection: Passive Infra-red technology
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Detects motion within 18 metres and 110 degrees.
  • Multi-segmented optical lens for improved movement detection.
  • 3-wire design for enhanced reliability.
  • Adjustable time on, sensitivity, and lux level.
Professional Installation Requirements
  • Must be installed by a licensed electrician for optimal safety and performance.
Applications
  • Residential: Homes, bathrooms, walk-in robes, home offices
  • Commercial: Security lighting for various indoor and outdoor locations
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

5 years warranty against manufacturing defects.

Available Now

The Brilliant Beige Flexiscan PIR Security Sensor (Series 2) is available now for immediate purchase. Ideal for enhancing security in residential and commercial spaces.

Datasheet (18562_Datasheet_59056296-9abf-44c2-8f4b-cbd83670b18b.pdf, 1,412 Kb) [Download]

SDOC (18562_SDoC_f953ac50-12c9-411f-bc8e-eb950862d37e.pdf, 828 Kb) [Download]
