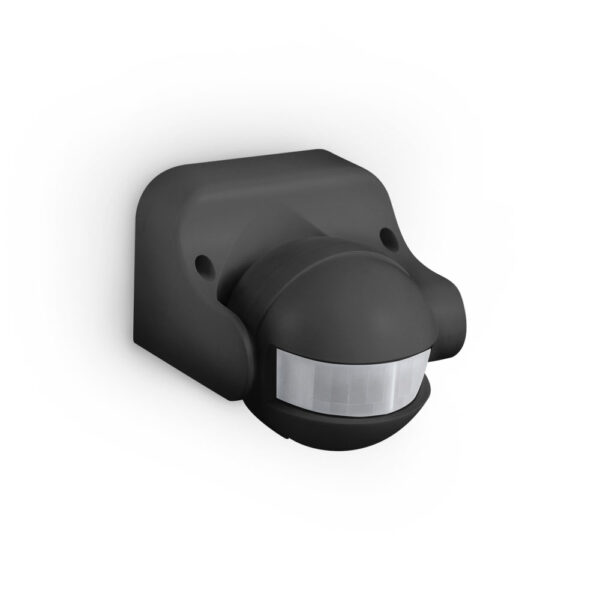

PIR Sensor 12m Wall Mount | IP44 Weather Protection | Adjustable Time Delay | 180° Detection Angle | by atom
The PIR Sensor 12m Wall Mount is designed for efficient home security and lighting automation. With a 12m detection range and adjustable time delay from 10 seconds to 7 minutes, it ensures optimal performance in various environments. Featuring IP44 weather protection and a 180° detection angle, this sensor is perfect for residential and commercial applications, providing energy-efficient lighting control based on occupancy and ambient light levels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Motion Sensor, Passive Infrared Sensor, PIR Motion Detector, Wall Mounted PIR Sensor
Technical Specifications
- IP Rating: IP44
- Body Material: Polycarbonate
- Installation Type: Wall mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230V~
- Sensor Type: PIR
- Lux Range: <3 to 2000 lx
- Detection Range: 12 m
- Time Delay: 10 seconds to 7 minutes
- Switched Output: Yes, 1200 W rating
- Detection Angle: 180°
- Dusk Mode: Yes
- Adjustable Hold Time: Yes
- Lux Adjustment: Yes
- Manual Override: No
- Corridor Function: No
- Dimensions (H x L x W): 120mm x 60mm x 80mm
- Weight: 0.3 kg
Key Features
- PIR sensor with 12m detection range
- Adjustable time delay from 10 seconds to 7 minutes
- Lux adjustment from <3 to 2000 lx for daylight sensing
- 180° detection angle
- Switched output rated at 1200 W
- Wall mount installation with IP44 weather protection
- Dusk mode enabled for automatic night operation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal sensor performance.
Applications
- Residential: Home security and lighting automation
- Commercial: Office and retail lighting control
- Outdoor: Pathway and entrance lighting
Standards & Compliance
- AS/NZS 60669.1
- AS/NZS 60669.2.1
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy and ambient light levels.
Warranty Information
3 years return to base warranty for domestic use.
Available Now
The Atom PIR Sensor 12m Wall Mount IP44 White is available for immediate purchase, ideal for enhancing security and energy efficiency in residential and commercial lighting applications.
