Trade Discount 18%

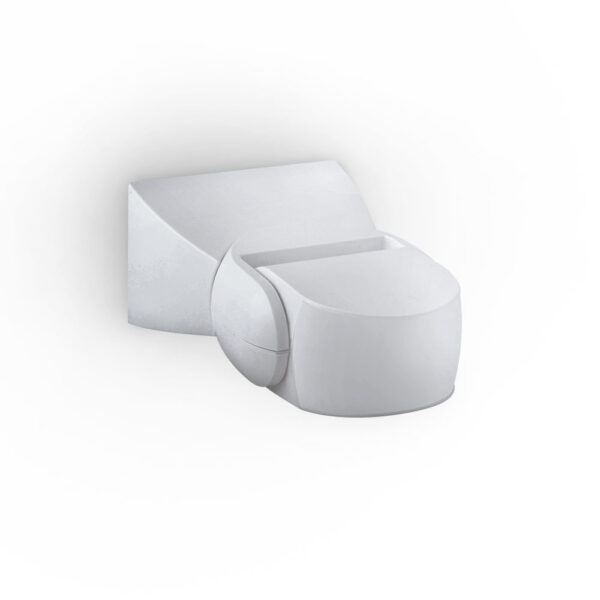

PIR Sensor 12m Wall Mount | IP65 Rated | Microwave Technology | Adjustable Lux Range | by atom
The PIR Sensor 12m Wall Mount is designed for reliable motion detection in outdoor settings, featuring an IP65 rating and adjustable detection range up to 12 meters. Ideal for residential and commercial lighting automation, this sensor utilizes advanced microwave technology for accurate performance, ensuring energy efficiency with adjustable lux settings and a 180° detection angle.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Motion Sensor, PIR Motion Detector, Wall Mounted PIR Sensor, Outdoor Motion Sensor
Technical Specifications
- IP Rating: IP65
- Sensor Type: Microwave
- Detection Range: 12 meters
- Detection Angle: 180 degrees
- Input Voltage: 230V~
- Input Frequency: 50 Hz
- Working Temperature Range: -20 to 40 °C
- Lux Range: <3 to 2000 lx
- Time Delay: 10 seconds to 12 minutes
- Switched Output Rating: 1200 W
- Adjustable Hold Time, Lux Adjustment, Detection Area/Sensitivity
- Installation Type: Wall mount
- Body Material: Polycarbonate
- Fitting Colour: White
- Dimensions (H x L x W): 120mm x 70mm x 90mm
- Weight: 0.3 kg
Key Features
- IP65 rated for outdoor use
- Adjustable detection range up to 12 meters
- Microwave sensor technology for reliable motion detection
- Adjustable lux range from <3 to 2000 lx
- Time delay adjustable from 10 seconds to 12 minutes
- Switched output rated at 1200 W
- 180° detection angle
- Dusk mode and lux adjustment for energy efficiency
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct wiring and compliance with electrical standards.
Applications
- Residential: Home security and lighting automation
- Commercial: Office and retail lighting control
- Outdoor: Pathway and perimeter lighting
Standards & Compliance
- AS/NZS 60669.1
- AS/NZS 60669.2.1
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy and ambient light levels.
Warranty Information
3 years return to base warranty for domestic use.
Available Now
The Atom PIR Sensor 12m Wall Mount IP65 Black is available now for immediate purchase. Ideal for residential, commercial, and outdoor lighting automation applications.
