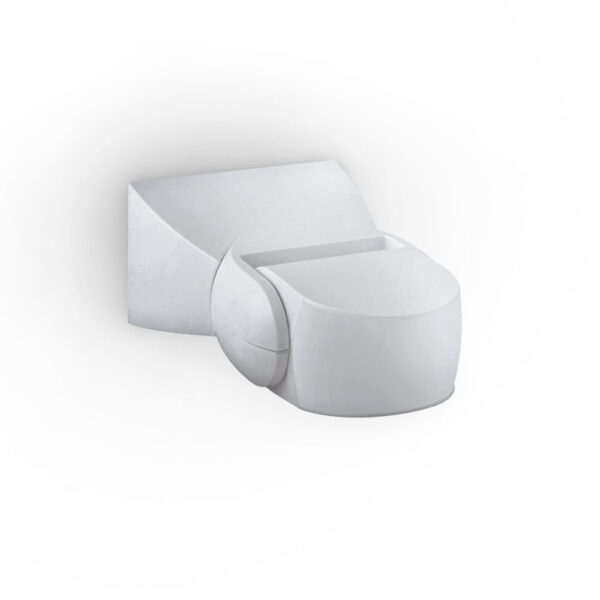

PIR Sensor 12m Wall Mount | IP65 Rated | Microwave Technology | Adjustable Sensitivity | by atom
The PIR Sensor 12m Wall Mount is designed for effective motion detection in both residential and commercial settings. With an impressive 12-meter detection range and IP65 rating, it ensures reliable performance outdoors. Featuring adjustable sensitivity and dusk mode, this sensor optimizes energy efficiency while enhancing security, making it perfect for outdoor lighting control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Motion Sensor, Occupancy Sensor, Microwave PIR Sensor, Wall Mounted Motion Detector
Technical Specifications
- IP Rating: IP65
- Sensor Type: Microwave
- Detection Range: 12 meters
- Detection Angle: 180 degrees
- Input Voltage: 230V~
- Input Frequency: 50 Hz
- Switched Output Rating: 1200 W
- Lux Range: <3 to 2000 lx
- Time Delay: 10 seconds to 12 minutes
- Operating Temperature Range: -20 to 40 °C
- Body Material: Polycarbonate
- Installation Type: Wall mount
- Adjustable Hold Time, Lux Adjustment, Detection Area/Sensitivity
- Dimensions (H x L x W): 120mm x 70mm x 90mm
- Weight: 0.3 kg
Key Features
- IP65 rated for outdoor use
- Adjustable detection range and sensitivity
- Microwave sensor technology
- 12 meter detection range with 180° detection angle
- Dusk mode and lux adjustment for energy efficiency
- Switched output rated at 1200W
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Residential: Home security and lighting automation
- Commercial: Office and retail lighting control
- Outdoor: Pathway and perimeter lighting
Standards & Compliance
- AS/NZS 60669.1 – Switches for household and similar fixed electrical installations
- AS/NZS 60669.2.1 – Particular requirements for motion sensors
- AS/NZS 4268 – EMC requirements for electrical lighting and similar equipment
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy and ambient light levels.
Warranty Information
3 years return to base warranty for domestic use.
Available Now
The Atom PIR Sensor 12m Wall Mount IP65 White is available now for immediate purchase. Ideal for enhancing security and energy efficiency in residential and commercial outdoor lighting applications.
