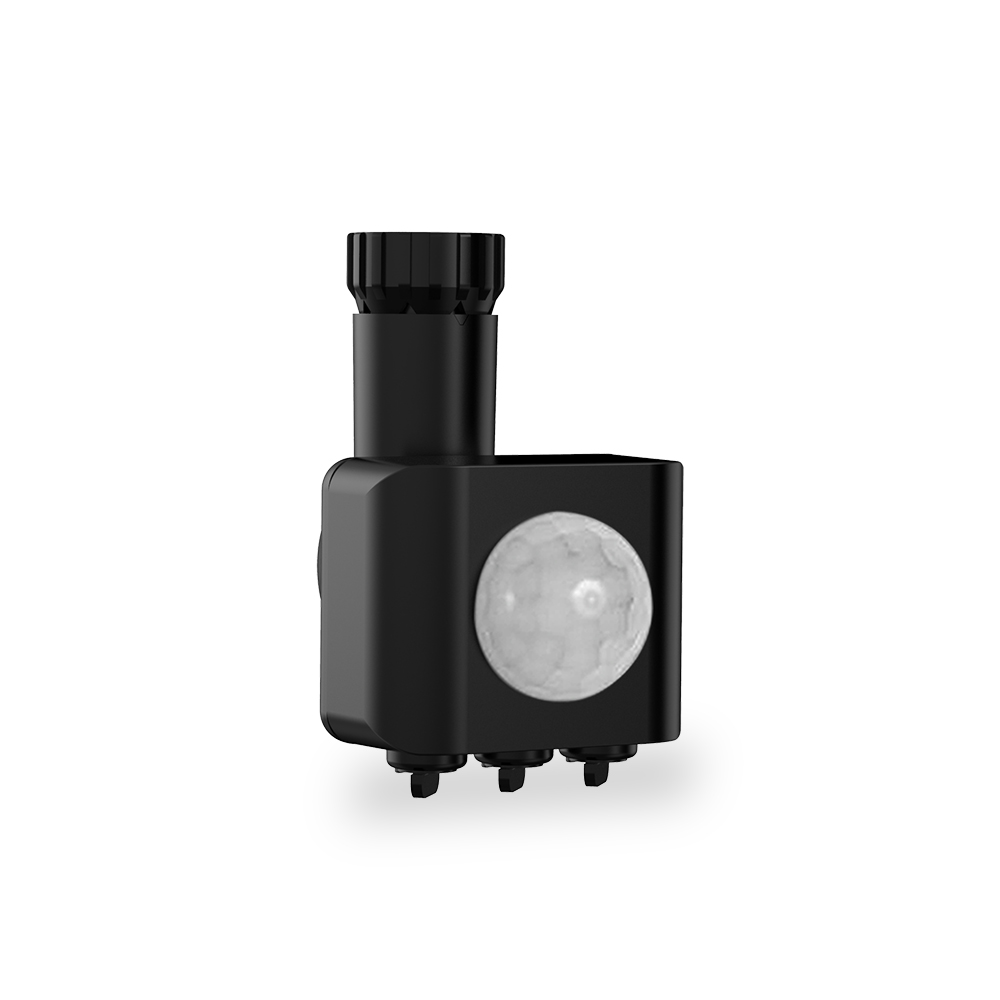

PIR Sensor for AT9819/TRI Series Floodlights | Adjustable Lux Range | 8m Detection Range | Dusk Mode | by atom
The PIR Sensor for AT9819/TRI Series Floodlights is designed for efficient outdoor lighting automation, featuring an adjustable lux range from 10 to 2000 lx and a detection range of up to 8 meters. Ideal for security lighting control, this sensor helps reduce energy consumption by activating floodlights only when motion is detected, making it perfect for environmentally conscious users.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PIR Motion Sensor for Floodlights, Passive Infrared Sensor for Outdoor Lighting, Floodlight PIR Sensor
Technical Specifications
- Sensor Type: PIR
- Lux Range: 10-2000 lx
- Detection Range: 8 meters
- Time Delay: 10 seconds to 7 minutes
- Switched Output: No
- Corridor Function: No
- Lux Adjustment: Yes
- Manual Override: No
- Dusk Mode: Yes
- Adjustable Hold Time: Yes
- Adjustable Standby Level: No
- Adjustable Detection Area / Sensitivity: Yes
- Dimensions (H x L x W): 40mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- PIR sensor type for motion detection
- Lux range adjustable from 10 to 2000 lx
- Detection range up to 8 meters
- Time delay adjustable from 10 seconds to 7 minutes
- Lux adjustment and dusk mode for automatic operation
- Adjustable hold time and detection area sensitivity
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Outdoor floodlight automation
- Security lighting control
- Energy-saving lighting systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by activating floodlights only when motion is detected
- Helps lower carbon footprint through efficient lighting management
Warranty Information
2 years return to base warranty for domestic use.
Available Now
The atom PIR Sensor for AT9819/TRI Series 30W and 50W Floodlights is available for immediate purchase, ideal for enhancing security and energy efficiency in outdoor lighting applications.
