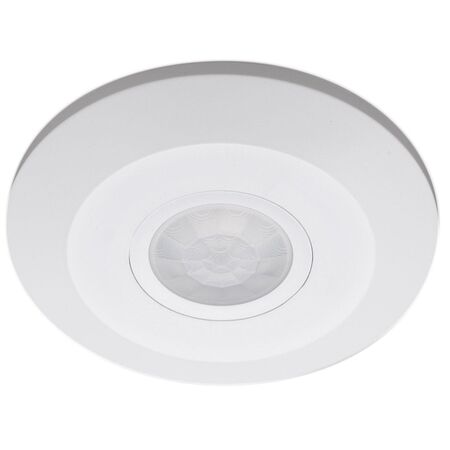

PIR Surface Mount Sensor | 360° Detection | Adjustable Time Delay | LUX Sensitivity by Mercator

BRAND: Mercator
SKU: XSEN002PIR
$25.80 List price: $31.30
+
PIR surface mount sensor with 360° detection range and adjustable time delay—ideal for residential and commercial security. Built for energy efficiency, with LUX sensitivity and override function.

Product Name/Title: PIR Surface Mount Sensor | 360° Detection | Adjustable Time Delay | LUX Sensitivity by Mercator

Brand: Mercator

SKU: XSEN002PIR

Alternatively Known As: PIR Motion Sensor, Infrared Motion Detector, Surface Mount PIR Sensor

Technical Specifications
  • Rated load: Max 2000W (incandescent), Max 1000W (energy saving lamp)
  • Detection range: 360° up to 6 meters
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Surface mounted passive infrared sensor
  • 360° detection range to 6 meters
  • 10 seconds to 15 minutes adjustable time delay
  • Adjustable LUX sensitivity
  • With override function
  • 3 wire design
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Residential: Homes, apartments, garages
  • Commercial: Offices, retail spaces, security applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Energy-efficient operation reduces electricity consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Mercator PIR Surface Mount Sensor is available now for immediate purchase. Ideal for enhancing security in residential and commercial spaces.
