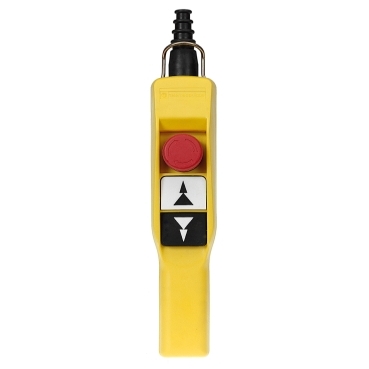

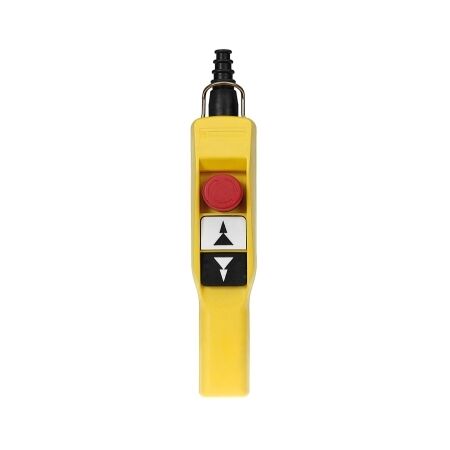

Pistol Pendant Station 2 PB+ | Ergonomic Design | IP65 Rated | 2 Push Buttons | @Pack of 1 | by Clipsal
The Pistol Pendant Station 2 PB+ is designed for industrial machinery control, featuring an ergonomic pistol grip and two push buttons for easy operation. With an IP65 rating for dust and water resistance, this robust control station is perfect for cranes, hoists, and material handling equipment, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pistol Pendant Station 2 PB+ | Ergonomic Design | IP65 Rated | 2 Push Buttons | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXACA2073
Alternatively Known As: Pendant control station, industrial pendant switch, crane pendant controller, 2 button pendant station, Clipsal SCHXACA2073
Technical Specifications
- Number of buttons: 2
- Enclosure material: Impact-resistant thermoplastic
- Ingress protection: IP65
- Rated insulation voltage: 500V
- Operating temperature: -25°C to +70°C
- Contact type: 1NO per button
- Cable entry: M20
- Dimensions (H x L x W): 200mm x 70mm x 60mm
- Weight: 0.45 kg
Key Features
- Ergonomic pistol grip design for comfortable operation
- 2 push buttons for up/down or start/stop control
- Robust housing for industrial environments
- IP65 rated for dust and water resistance
- Easy wiring and installation
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and correct operation.
Applications
- Industrial machinery control
- Cranes and hoists
- Material handling equipment
- Factory automation
- Workshops and warehouses
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- IP65 rating ensures long service life in harsh environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Pistol Pendant Station 2 PB+ (SCHXACA2073) is available for immediate purchase. Ideal for industrial machinery, cranes, and hoist control applications.
