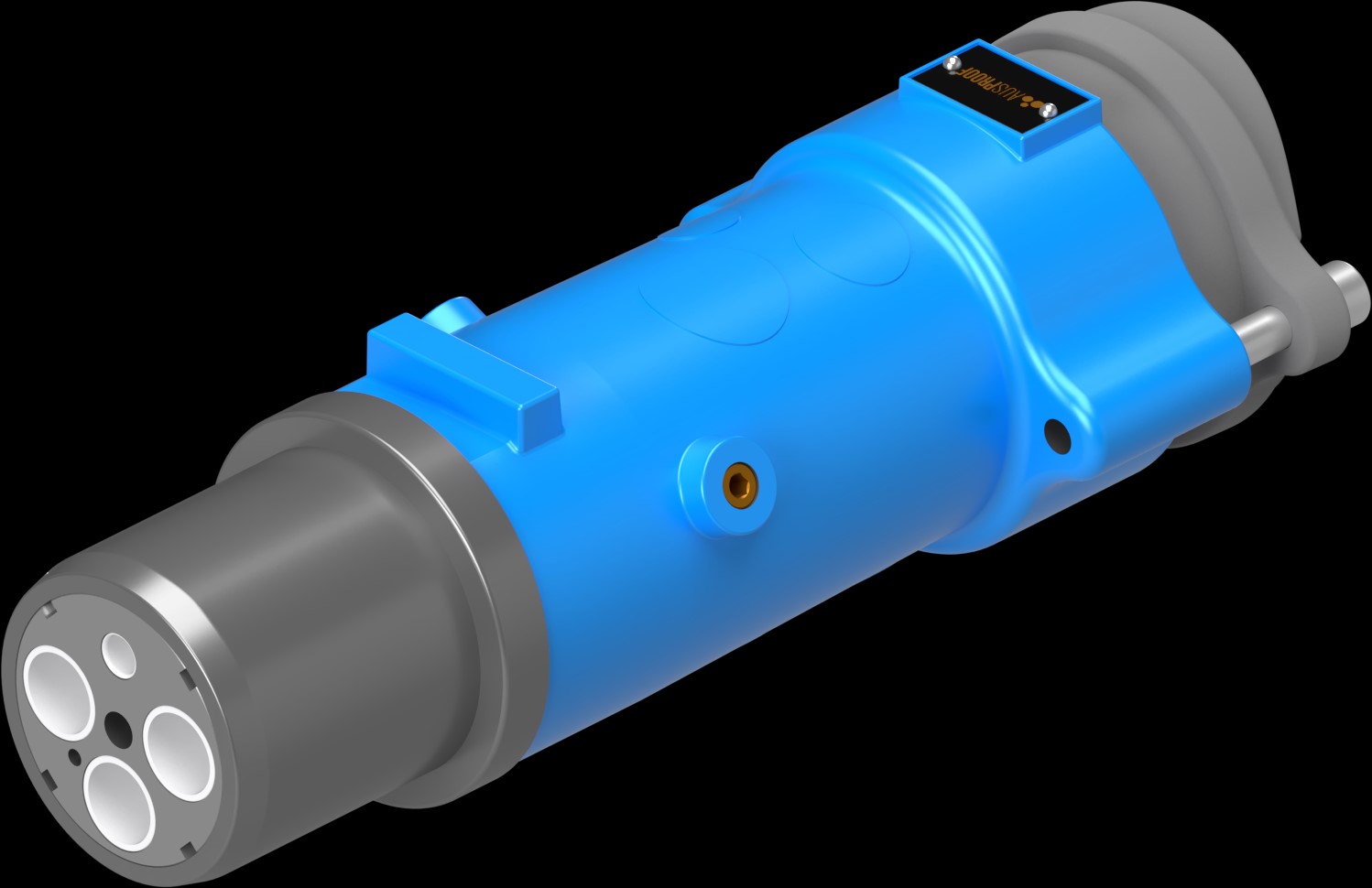

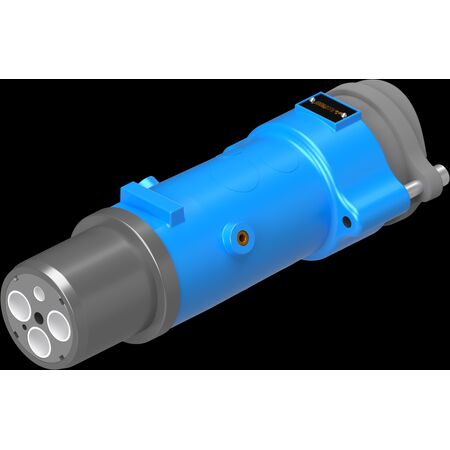

PL 1100V 300A 4P Plug | IP55 Rated | Quick Release & Flameproof Design | Ausproof

BRAND: Ausproof

SKU: RS2177

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

The PL 1100V 300A 4P Plug is designed for hazardous environments, featuring IP55 rating, quick release mechanism, and durable stainless steel construction. Ideal for mining and tunnelling applications, it ensures safety and compliance with professional installation.

Description

Product Name/Title: PL 1100V 300A 4P Plug (90) 50-C 40-45-G (275.1)

Brand: Ausproof

SKU: RS2177

Alternatively Known As: PL Range 4 Pin Plug, Ex Certified Industrial Plug, Mining Plug 300A, Flameproof Plug 1100V

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 250mm x 300mm x 150mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site body casting replacement.

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL 1100V 300A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
