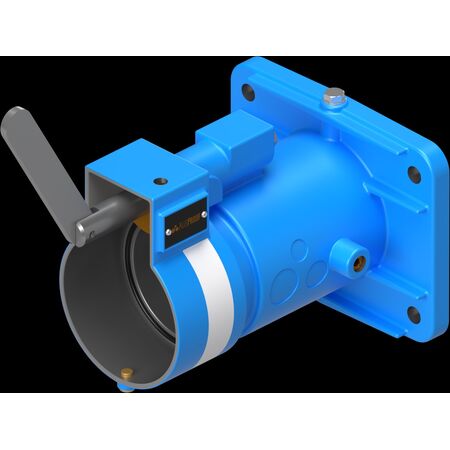

PL 1100V 425A 6P Receptacle | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1909

$863.50 List price: $1,072.50

+ −

30 Days Return Delivery Options

The PL 1100V 425A 6P receptacle is designed for hazardous environments, featuring IP55 rating and quick release functionality. Ideal for mining and tunnelling applications, it offers durable stainless steel construction and easy termination for professional installation.

Description

Product Name/Title: PL 1100V 425A 6P RECEP Blue wW Body Kit

Brand: Ausproof

SKU: RS1909

Alternatively Known As: PL Range Receptacle, Flameproof Receptacle, Ex Certified Receptacle, Mining Electrical Receptacle, Hazardous Area Receptacle

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Receptacle Weight: 10.7 kg
Dimensions (H x L x W): 300mm x 150mm x 250mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof design enhances safety, reducing risk of environmental hazards.

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL 1100V 425A 6P Receptacle Blue wW Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
