PL 12/25 Crimp & Insul Set 6P | 660V-3300V | IP55 Ingress Protection | Stainless Steel by Ausproof
The PL 12/25 Crimp & Insul Set 6P is designed for robust electrical connections in hazardous environments, featuring a voltage range of 660V to 3300V and IP55 ingress protection. Ideal for mining and tunnelling applications, it ensures safety and reliability with quick release and easy termination features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

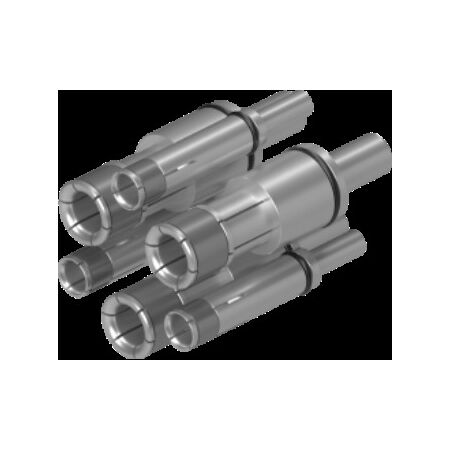

Product Name/Title: PL 12 / 25 Crimp & Insul Set 6P 25 mm^2
Brand: Ausproof
SKU: RS1943
Alternatively Known As: Ex-certified plug and receptacle set, Flameproof plug, Mining plug and socket, Hazardous area electrical connector
Technical Specifications
- Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 300mm x 250mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation and maintenance should be performed by qualified personnel trained in hazardous area electrical equipment to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 12 / 25 Crimp & Insul Set 6P 25 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
