PL 16/25 Crimp & Insul Set 6P | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof
The PL 16/25 Crimp & Insul Set 6P is designed for robust electrical connections in hazardous environments, featuring a voltage range of 660V to 3300V and IP55 ingress protection. Ideal for mining and tunnelling applications, it offers quick release and easy termination for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

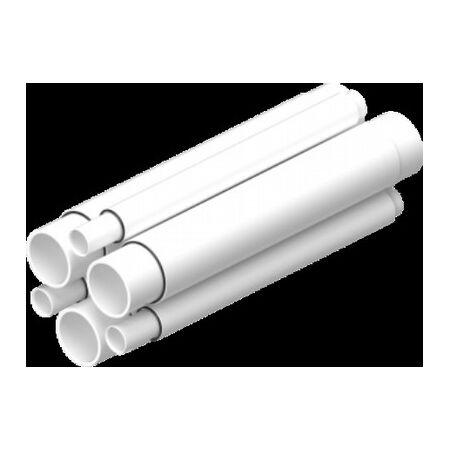

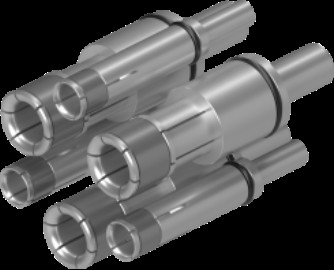

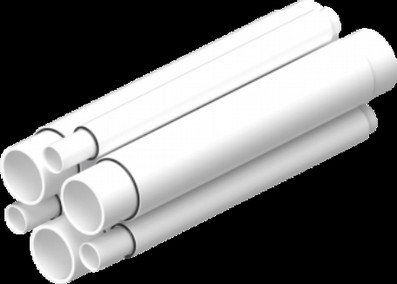

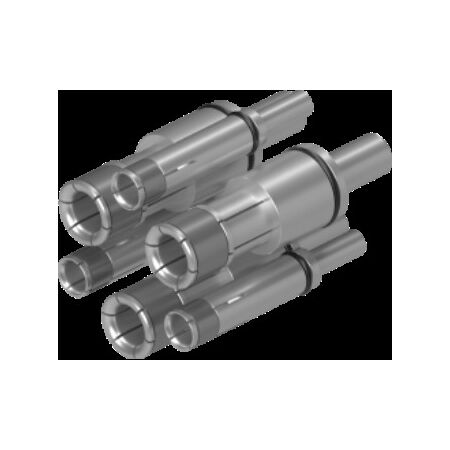

Product Name/Title: PL 16 / 25 Crimp & Insul Set 6P 50 mm^2
Brand: Ausproof
SKU: RS1954
Alternatively Known As: PL Range Crimp and Insulation Set, Ex-certified Industrial Plug, Flameproof Plug and Receptacle Set
Technical Specifications
- Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation and maintenance should be performed by qualified personnel trained in hazardous area electrical equipment to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairability minimizes waste by allowing on-site repairs
- Lightweight design reduces material usage and transportation emissions
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 16 / 25 Crimp & Insul Set 6P 50 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
