PL 16/25 Crimp & Insul Set 6P | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
The PL 16/25 Crimp & Insul Set 6P is designed for high voltage applications, supporting a voltage range of 660V to 3300V and featuring IP55 ingress protection. Ideal for mining and commercial use, this set offers quick release functionality and durable stainless steel construction for reliable performance in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

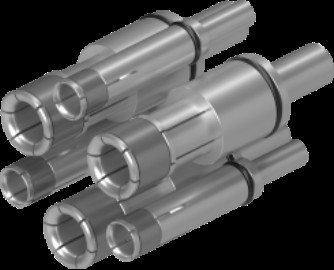

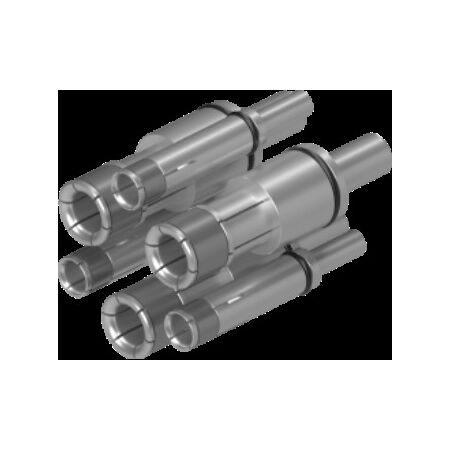

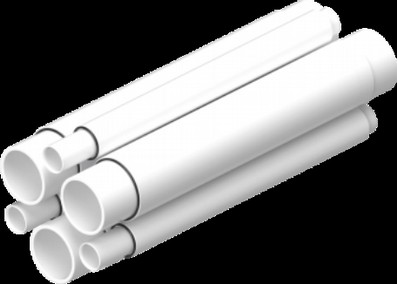

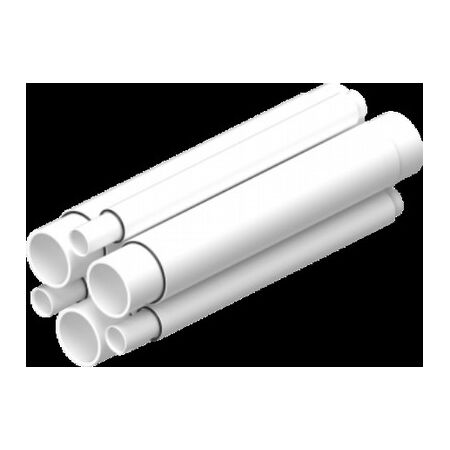

Product Name/Title: PL 16 / 25 Crimp & Insul Set 6P 35 mm^2
Brand: Ausproof
SKU: RS1953
Alternatively Known As: Ex-certified plug and receptacle set, Flameproof electrical connector, Mining plug and socket, Stainless steel industrial plug, Quick release electrical connector
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Configurations: 4-pin or 6-pin options available
- Ex-certified for Group 1 hazardous environments
- Dimensions (H x L x W): 150mm x 300mm x 250mm
- Weight: 10.7 kg
Key Features
- Quick Release mechanism
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation and maintenance should be performed by qualified personnel trained in hazardous area electrical equipment to ensure compliance with safety standards and proper flameproof repair procedures.
Applications
- Mining and tunnelling operations
- Commercial applications
- Group 1 hazardous environments requiring flameproof electrical connections
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Flameproof repairable design minimizes full unit replacements
- Compliant with safety standards reducing risk of hazardous incidents
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PL 16 / 25 Crimp & Insul Set 6P 35 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
