PL 16/25 Crimp & Insul Set 6P | 660V to 3300V | IP55 Rated | Stainless Steel by Ausproof
The PL 16/25 Crimp & Insul Set 6P is designed for high voltage applications, operating between 660V to 3300V with an IP55 rating. Ideal for mining and hazardous environments, this set features a quick release mechanism and durable stainless steel construction for enhanced safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

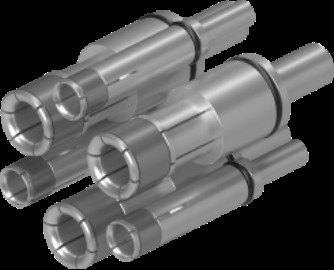

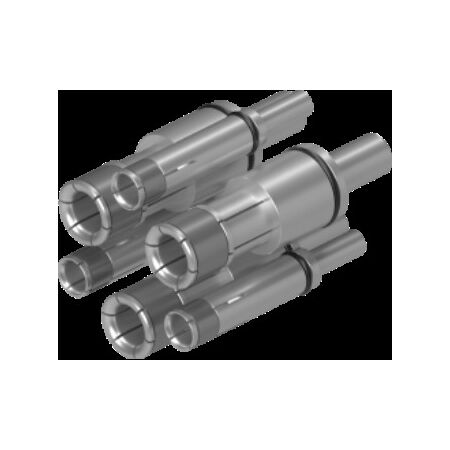

Product Name/Title: PL 16 / 25 Crimp & Insul Set 6P 25 mm^2
Brand: Ausproof
SKU: RS1952
Alternatively Known As: Ex-certified plug and receptacle set, Flameproof electrical connectors, Mining electrical connectors, Stainless steel industrial plugs
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Configurations: 4-pin or 6-pin available
- Weight: Receptacle 10.7kg, Plug 9.0kg
- Dimensions (H x L x W): 150mm x 300mm x 250mm
- Weight: 10.7 kg
Key Features
- Quick Release mechanism
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining and tunnelling operations
- Commercial applications
- Group 1 hazardous environments requiring flameproof electrical connections
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair reduces waste and downtime
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 16 / 25 Crimp & Insul Set 6P 25 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring flameproof electrical connections.
