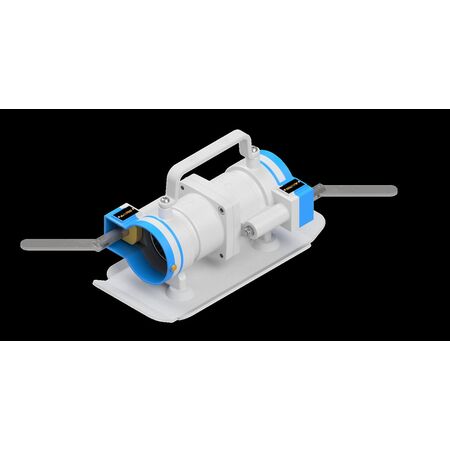

PL 19 / 25 B2B 4P Insulator and Contact Set | 660V to 3300V | 300A to 425A | IP55 by Ausproof

BRAND: Ausproof

SKU: RS2453

$541.80 List price: $672.90

+ −

30 Days Return Delivery Options

The PL 19 / 25 B2B 4P Insulator and Contact Set operates at 660V to 3300V with a current rating of 300A to 425A—ideal for mining and tunnelling applications. Built for hazardous environments, it features durable stainless steel construction and quick release for easy installation.

Description

Product Name/Title: PL 19 / 25 B2B 4P Insulator and Contact Set

Brand: Ausproof

SKU: RS2453

Alternatively Known As: PL Range Insulator Set, Back-to-Back 4 Pin Contact Set, Ex Certified Electrical Connector

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Receptacle Weight: 10.7 kg
Dimensions (H x L x W): 300mm x 300mm x 300mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electrical professionals experienced with hazardous area equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment in Hazardous Areas

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy on-site repair reduces waste and downtime.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 19 / 25 B2B 4P Insulator and Contact Set is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
