Home/Electrical/Industrial/Switching And Control/Starting Equipment/PL 3300V 300A 6P Plug | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

Trade Discount 19%

PL 3300V 300A 6P Plug (270) 50-C 55-60-G (245.3)

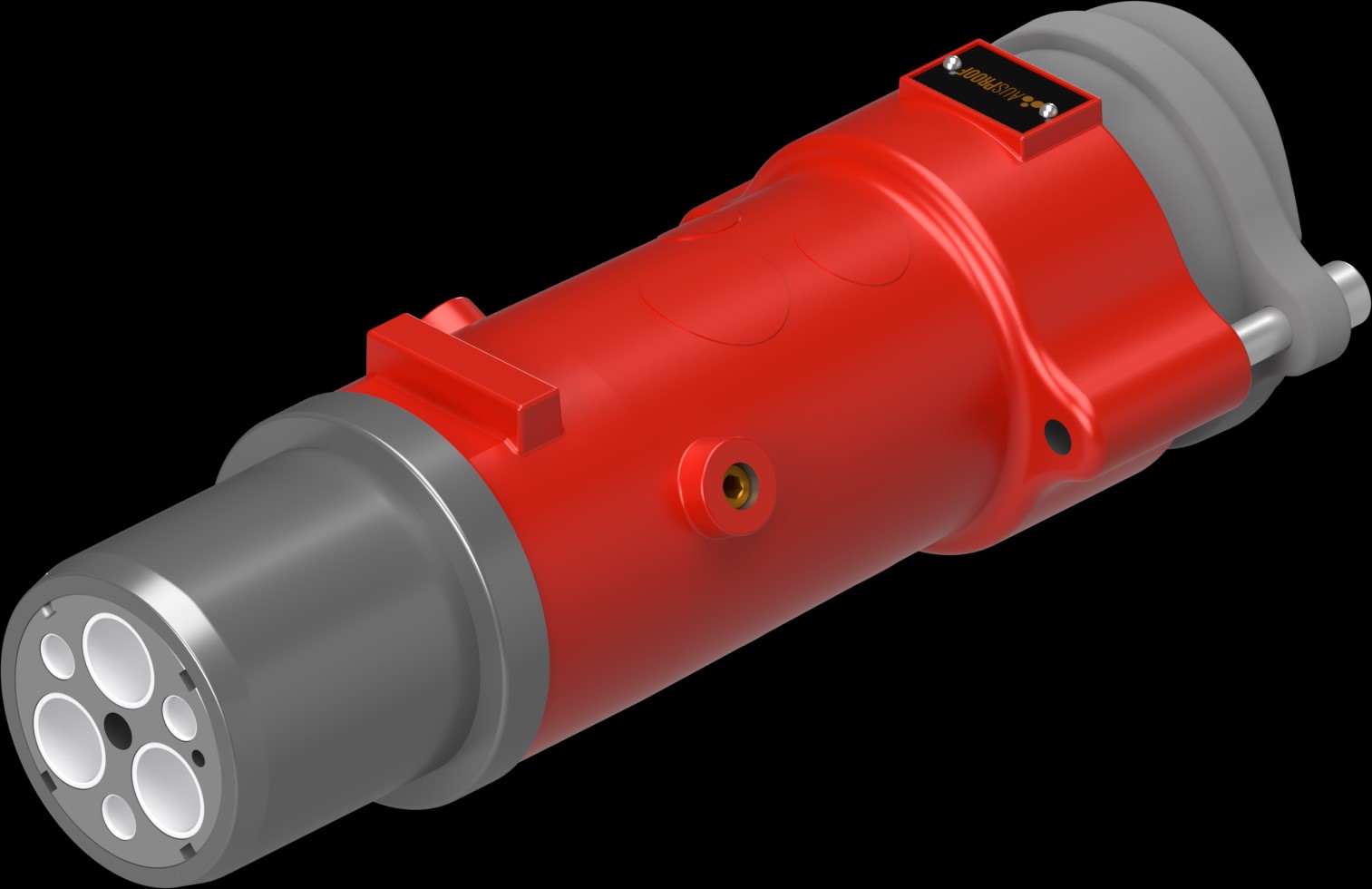

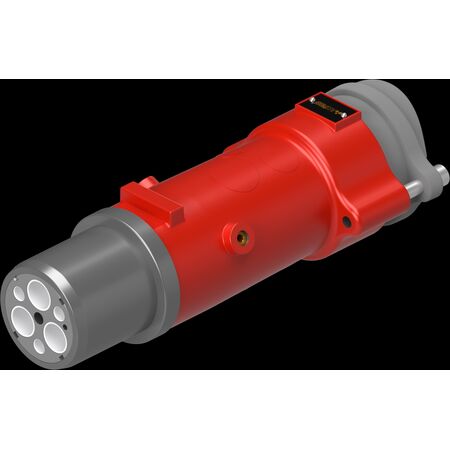

PL 3300V 300A 6P Plug | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS2202

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

The PL 3300V 300A 6P Plug is designed for high voltage applications, operating between 660V to 3300V with an IP55 rating. Ideal for mining and tunnelling, this heavy-duty plug features quick release and stainless steel construction for durability and safety in hazardous environments.

Description

Product Name/Title: PL 3300V 300A 6P Plug (270) 50-C 55-60-G (245.3)

Brand: Ausproof

SKU: RS2202

Alternatively Known As: PL Range 300A Plug, Ex-certified 6 Pin Plug, Heavy Duty Mining Plug, Flameproof Electrical Plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 300mm x 250mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairability minimizes waste by allowing on-site body casting replacement.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 3300V 300A 6P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
