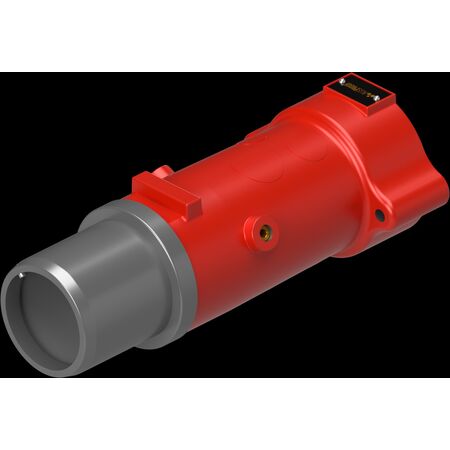

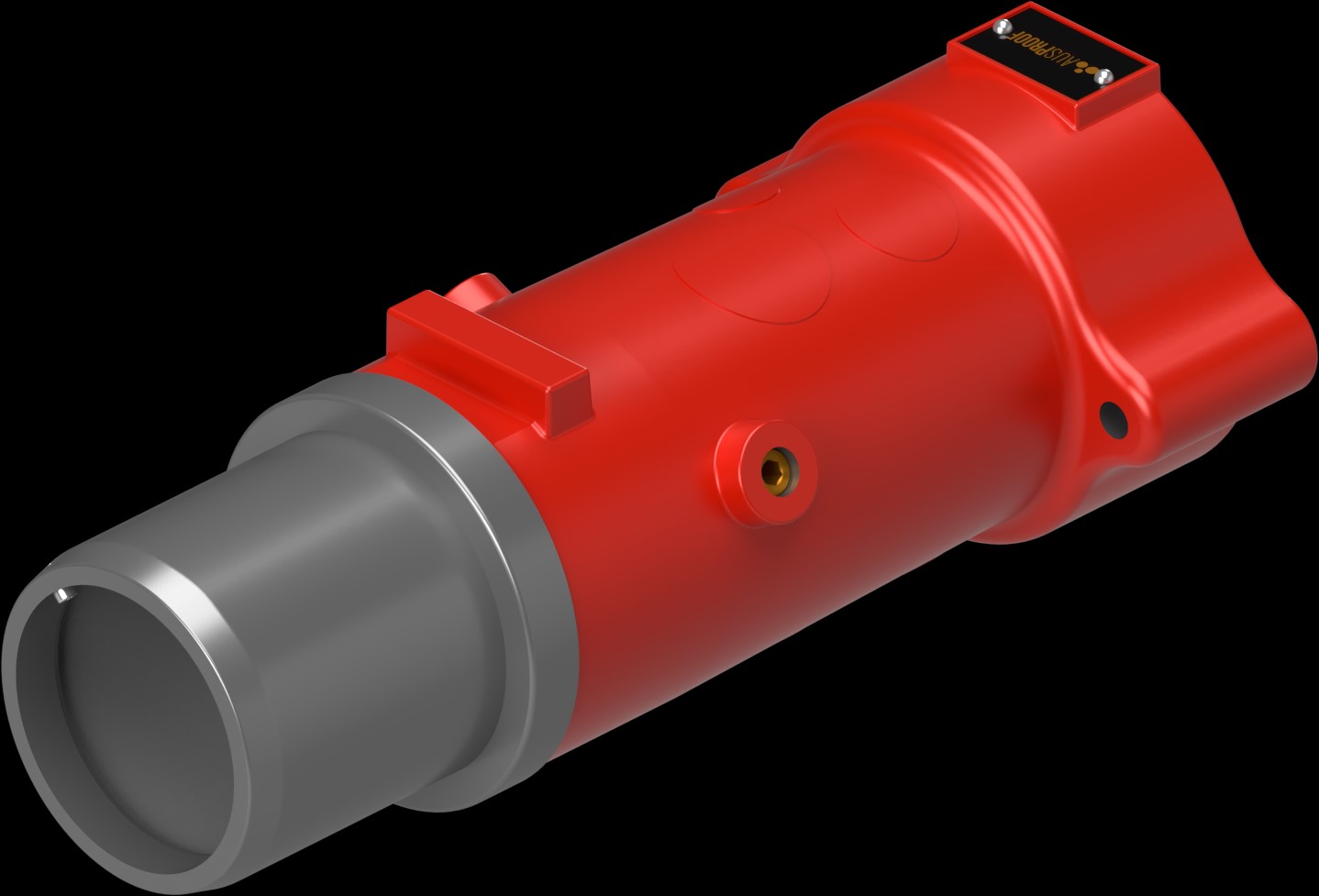

PL 3300V 300A 6P Plug | 660V to 3300V | IP55 Rated | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS2205

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

The PL 3300V 300A 6P Plug is designed for high-voltage applications, supporting a voltage range of 660V to 3300V and rated for 300A. Ideal for mining and tunnelling, this plug features a durable stainless steel construction and IP55 ingress protection, ensuring reliable performance in hazardous environments.

Description

Product Name/Title: PL 3300V 300A 6P Plug (270) 120-C 70-75-G (245.3)

Brand: Ausproof

SKU: RS2205

Alternatively Known As: PL Range 300A 6 Pin Plug, Ex Certified Mining Plug, Stainless Steel Industrial Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg
Dimensions (H x L x W): 120mm x 245mm x 270mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site body casting replacement.

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL 3300V 300A 6P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and certified electrical connections.
