PL 3300V 425A 6P Plug (180) 70-C 55-60-G (241.3)

PL 3300V 425A 6P Plug | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS1578

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

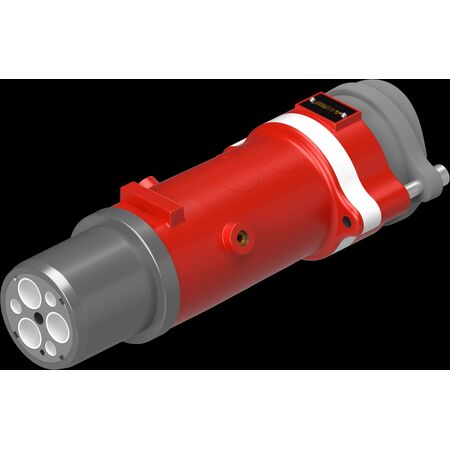

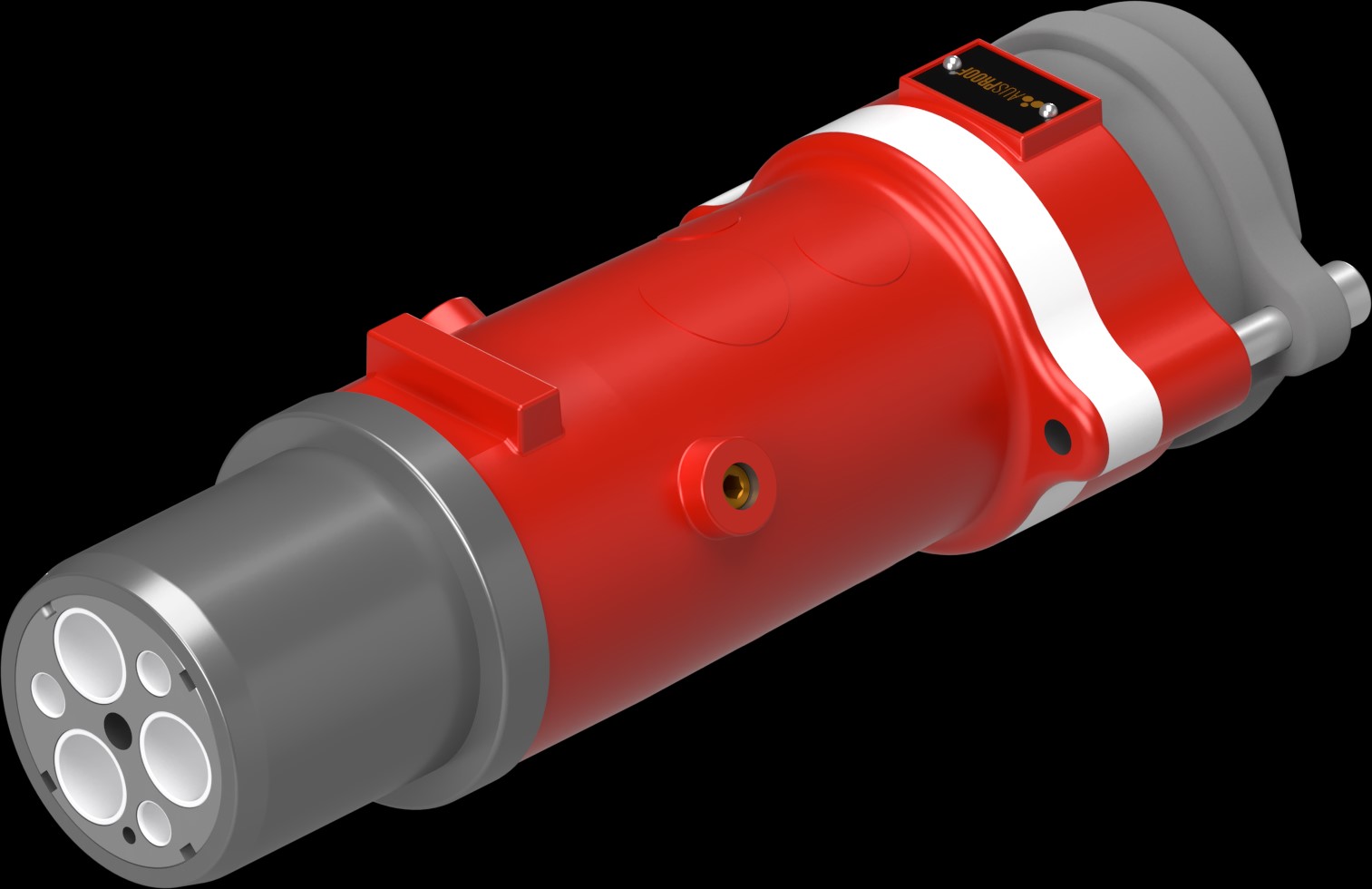

The PL 3300V 425A 6P Plug is designed for high voltage applications, operating between 660V to 3300V with an IP55 rating for dust and water resistance. Ideal for mining and tunnelling, this stainless steel plug features quick release functionality and easy termination, ensuring reliable connections in hazardous environments.

Description

Product Name/Title: PL 3300V 425A 6P Plug (180) 70-C 55-60-G (241.3)

Brand: Ausproof

SKU: RS1578

Alternatively Known As: PL Range 6 Pin Plug, Ex Certified Mining Plug, Stainless Steel Industrial Plug, Quick Release 425A Plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg
Dimensions (H x L x W): 241mm x 180mm x 180mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairability reduces waste by allowing on-site repairs without full replacement.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 3300V 425A 6P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and certified electrical connections.
