PL 4 Pin Plug Cage KIT | 660V to 3300V | IP55 Rated | Quick Release Mechanism by Ausproof
The PL 4 Pin Plug Cage KIT is designed for hazardous environments, operating at 660V to 3300V with an IP55 rating. Ideal for mining and tunnelling operations, it features a quick release mechanism and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

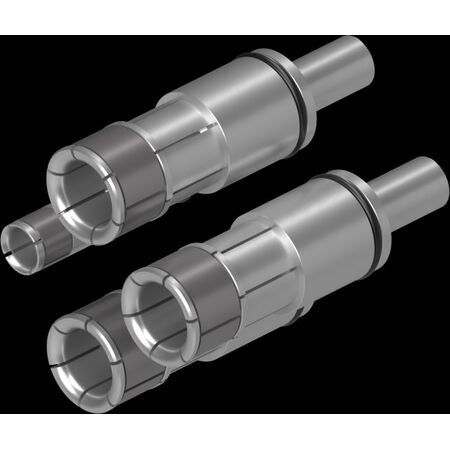

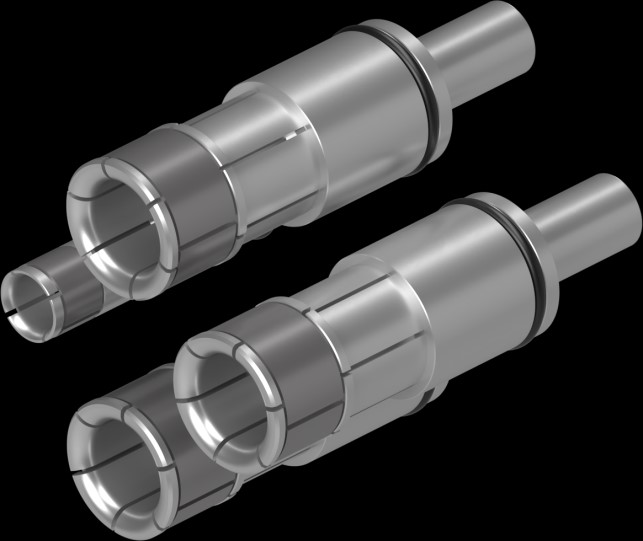

Product Name/Title: PL 4 Pin Plug Cage KIT
Brand: Ausproof
SKU: RS1914
Alternatively Known As: PL 4 Pin Flameproof Plug, Ex Certified 4 Pin Plug, Mining Plug Cage Kit, Stainless Steel Ex Plug
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: Plug 9.0 kg, Receptacle 10.7 kg
- Dimensions (H x L x W): 150mm x 250mm x 150mm
- Weight: 9 kg
Key Features
- Quick Release mechanism
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation and maintenance should be performed by qualified electricians trained in hazardous area equipment to ensure compliance and safety.
Applications
- Mining and tunnelling operations
- Commercial applications in Group 1 hazardous environments
- Low voltage electrical connections requiring flameproof plugs
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairability minimizes waste by allowing on-site body casting replacement
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 4 Pin Plug Cage KIT is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
