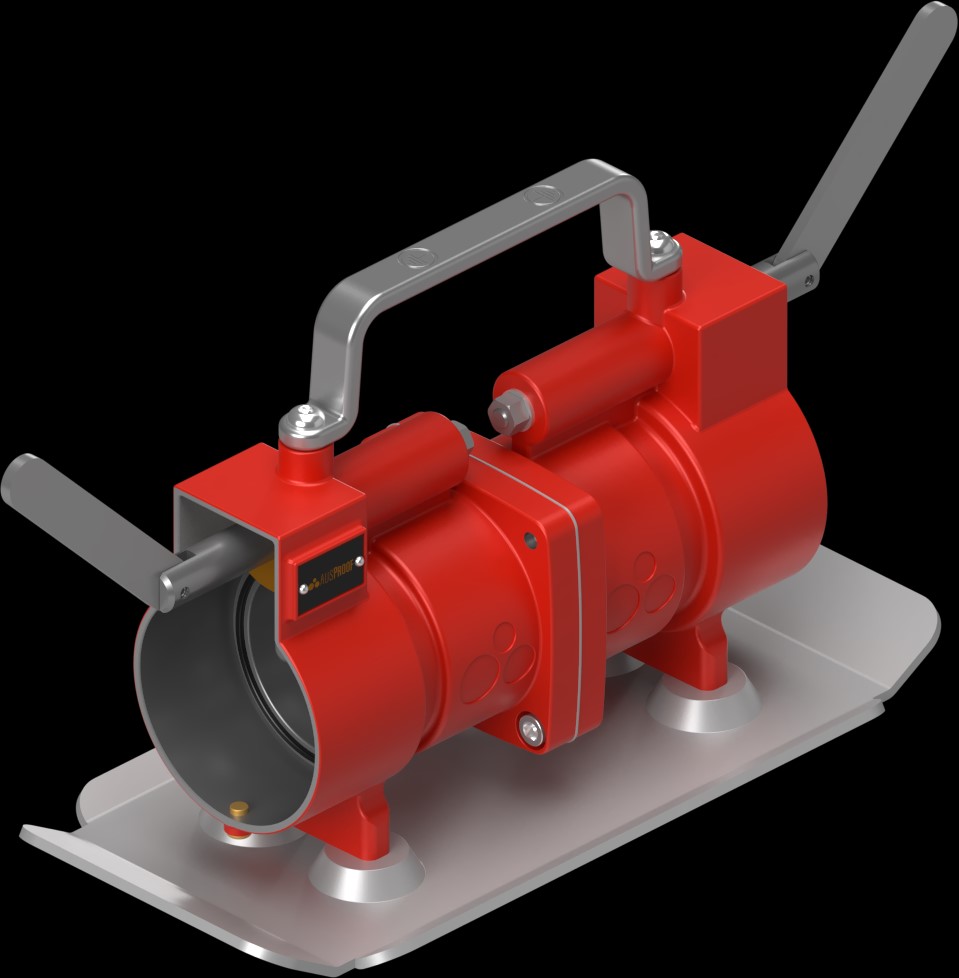

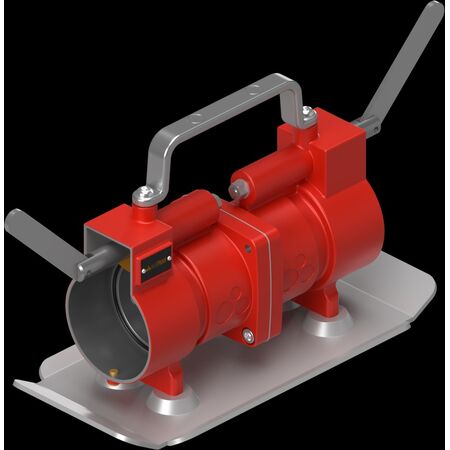

PL 4P B2B Cage Kit | 660V to 3300V | IP55 Rated | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS2437

$826.40 List price: $1,026.40

+ −

30 Days Return Delivery Options

The PL 4P B2B Cage Kit is designed for hazardous environments, operating at 660V to 3300V with IP55 protection. Ideal for mining and tunnelling applications, it features quick release and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL 4P B2B Cage Kit

Brand: Ausproof

SKU: RS2437

Alternatively Known As: Ex-certified plug and receptacle kit, PL Range B2B Cage Kit, Stainless steel hazardous area plug, Mining plug and receptacle

Technical Specifications

Operating Voltage: 660V to 3300V
Current Ratings: 300A and 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Receptacle Weight: 10.7 kg
Dimensions (H x L x W): 300mm x 300mm x 300mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof repairable design minimizes waste by allowing on-site body casting replacement

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL 4P B2B Cage Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and certified electrical connections.
