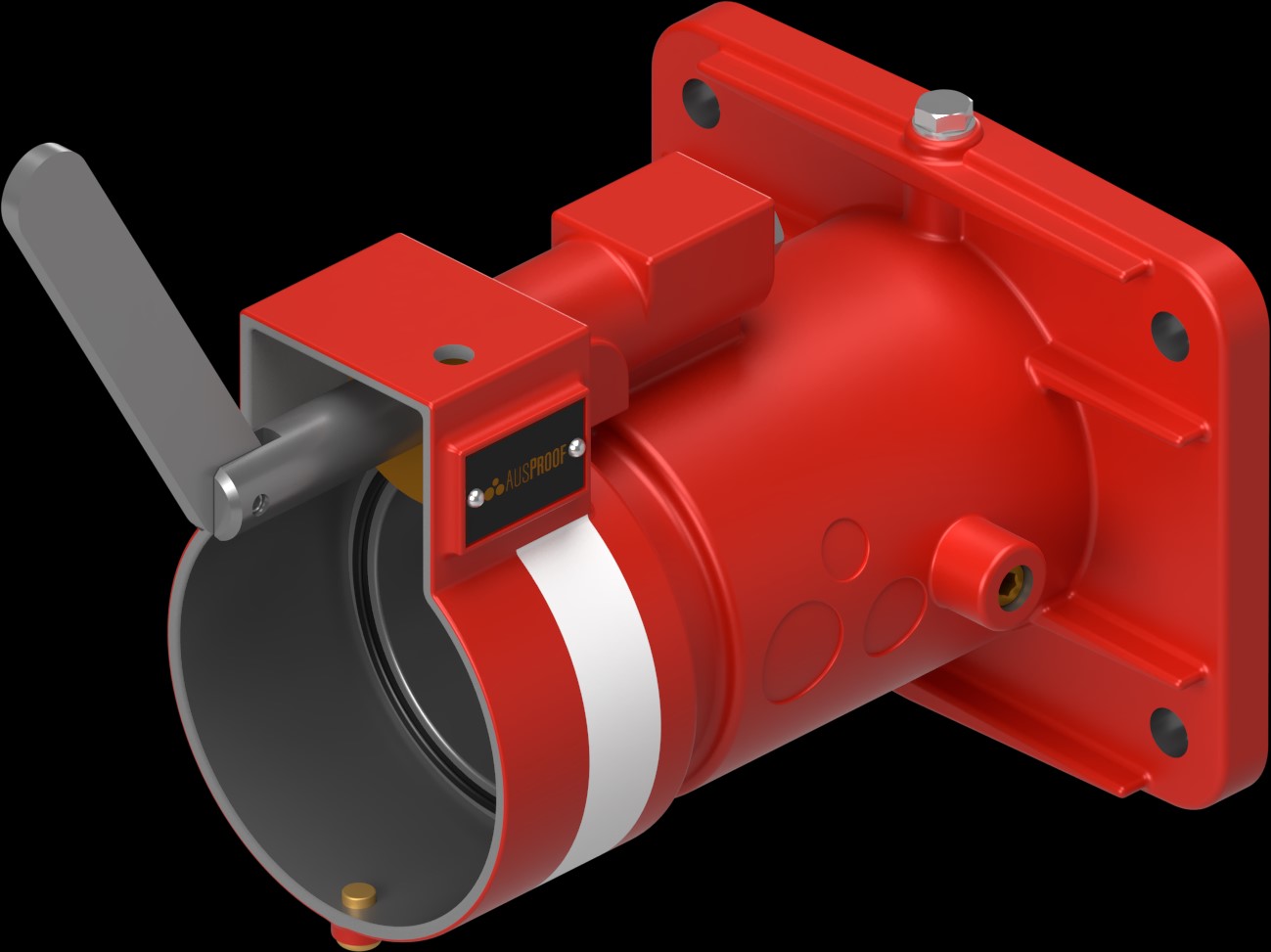

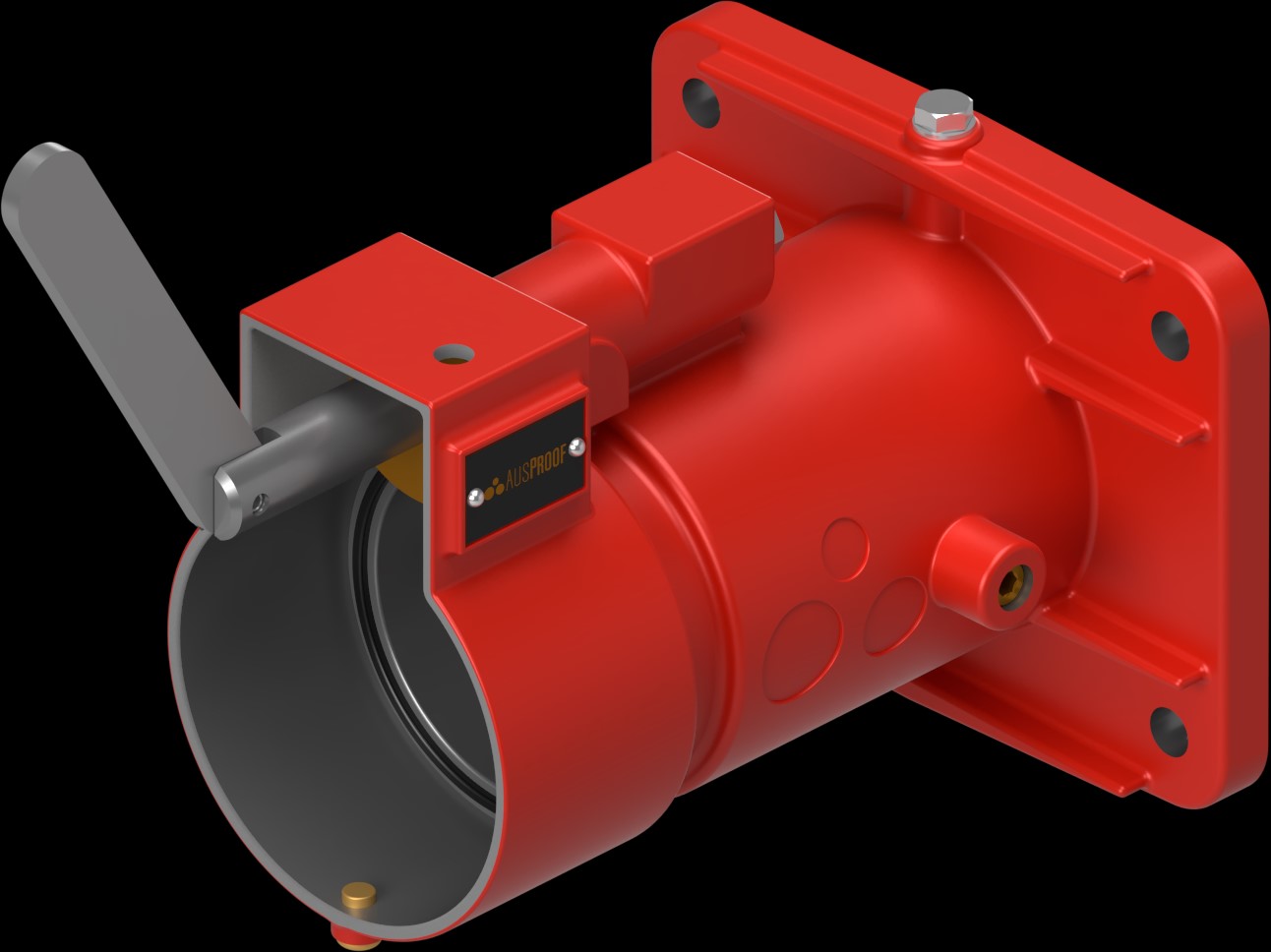

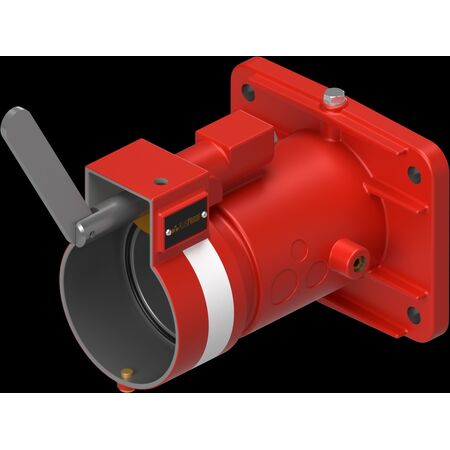

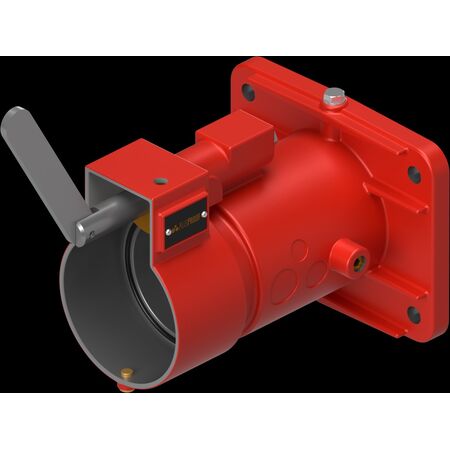

PL 6 Pin Receptacle Cage Kit | 660V to 3300V | IP55 Rated | Stainless Steel by Ausproof
The PL 6 Pin Receptacle Cage Kit is designed for robust electrical connections in hazardous environments, operating at 660V to 3300V with IP55 ingress protection. Ideal for mining and tunnelling applications, it features quick release and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 6 Pin Rec Cage KIT
Brand: Ausproof
SKU: RS1917
Alternatively Known As: PL 6 Pin Receptacle Cage Kit, Ex-certified PL Range Receptacle, Stainless Steel PL 6 Pin Connector
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 250mm x 250mm x 250mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 6 Pin Rec Cage KIT is available now for immediate purchase. Ideal for use in mining, tunnelling, and hazardous commercial environments requiring robust, flameproof electrical connections.
