Home/Electrical/Switchgear/Isolating Switches/Main Switches/PL 660V 300A 4P Plug | IP55 Rated | Quick Release & Stainless Steel | Ausproof

Trade Discount 19%

PL 660V 300A 4P Plug (270) 35-C 35-40-G (275.1)

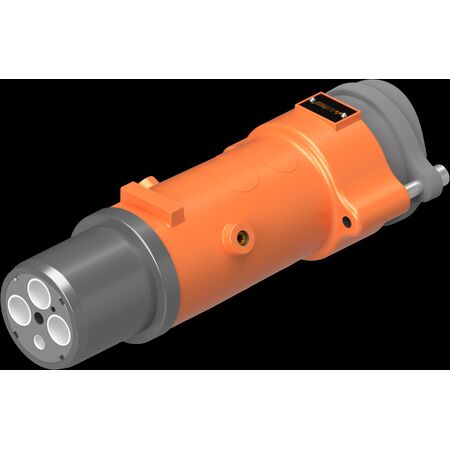

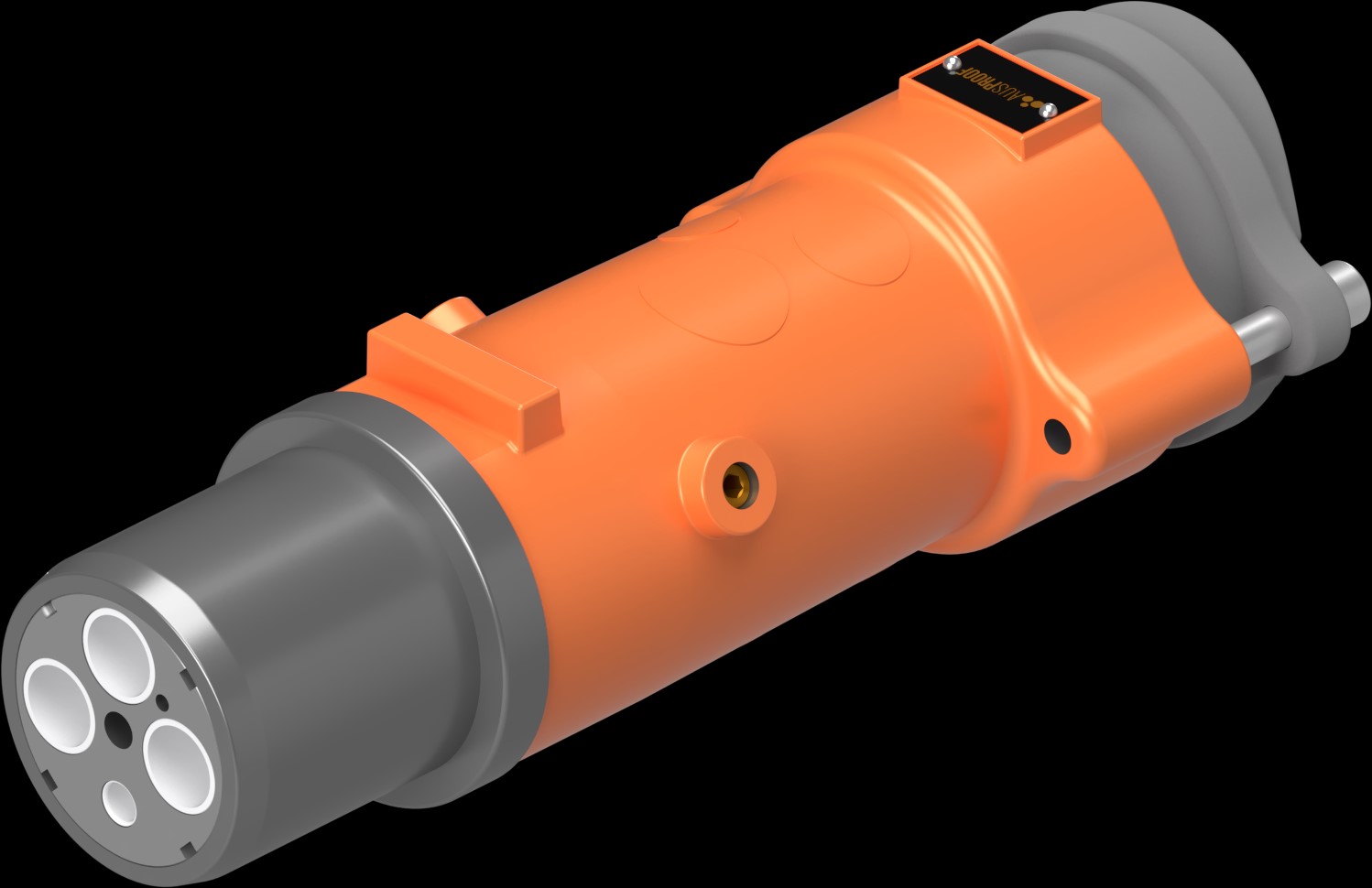

PL 660V 300A 4P Plug | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS2168

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

The PL 660V 300A 4P Plug is designed for mining and hazardous environments, featuring IP55 protection, quick release functionality, and durable stainless steel construction. Ideal for commercial applications, it ensures safety and compliance with professional installation.

Description

Product Name/Title: PL 660V 300A 4P Plug (270) 35-C 35-40-G (275.1)

Brand: Ausproof

SKU: RS2168

Alternatively Known As: PL Range 4 Pin Plug, Ex Certified 300A Plug, Mining Electrical Plug, Flameproof Plug 660V

Technical Specifications

Operating Voltage: 660 to 3300V
Current Rating: 300 to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 300mm x 250mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste and extends product life.
Easy flameproof repair reduces need for full replacements, minimizing material waste.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 660V 300A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
