PL 660V 425A 4P Receptacle | IP55 Rated | Quick Release & Flameproof Design | Ausproof
The PL 660V 425A 4P receptacle is designed for hazardous environments, featuring IP55 rating and quick release functionality. Ideal for mining and tunnelling applications, it offers robust flameproof connections and easy termination for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

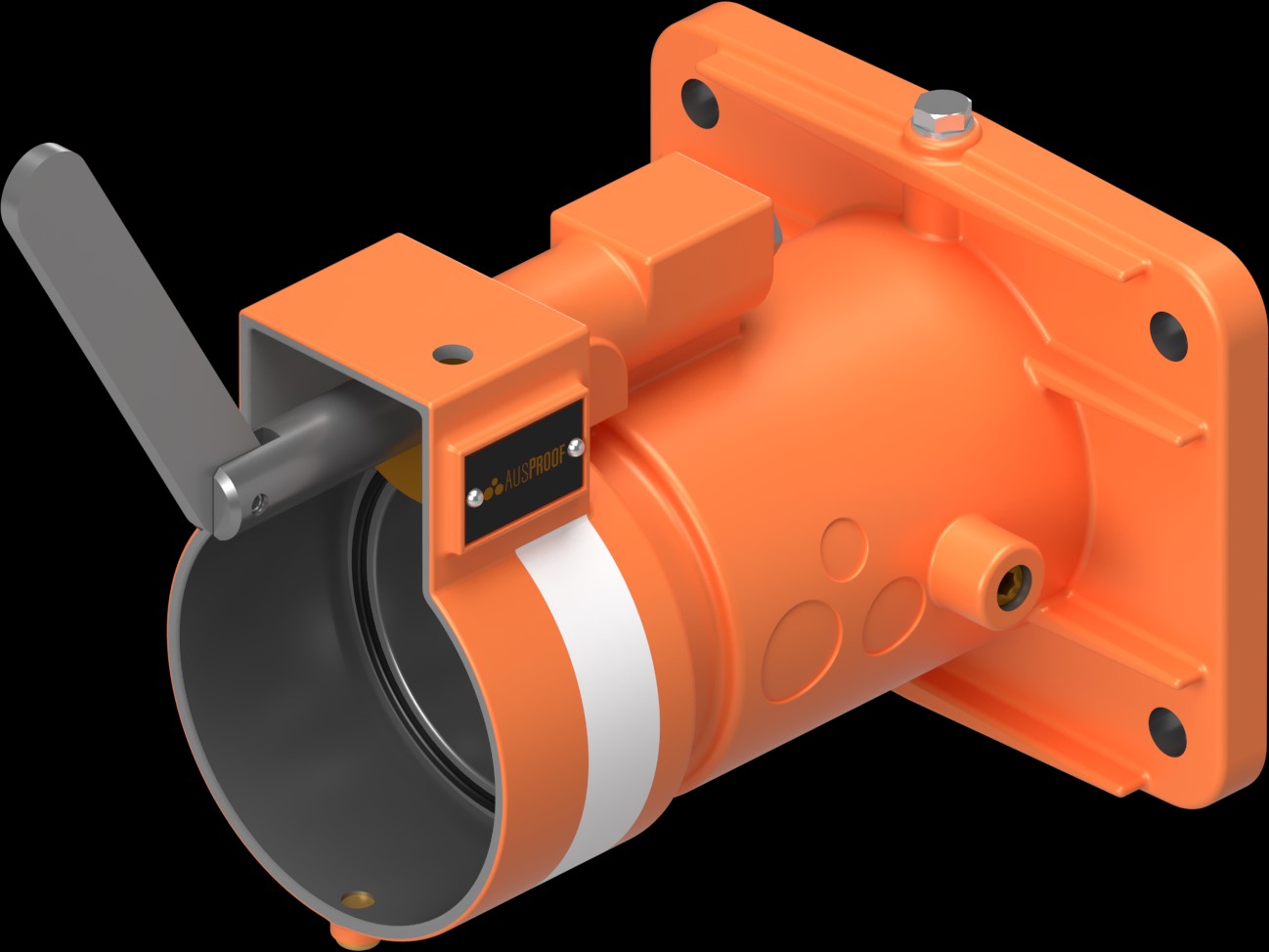

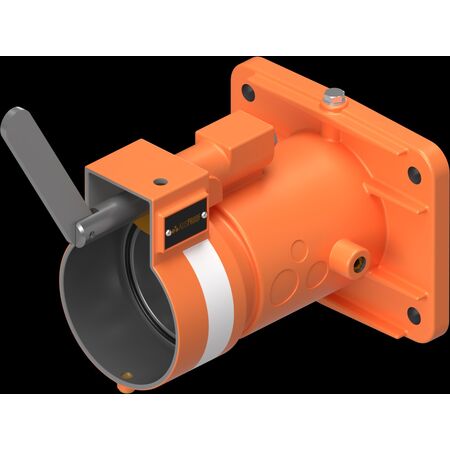

Product Name/Title: PL 660V 425A 4P RECEP Orange wW Body Kit
Brand: Ausproof
SKU: RS1905
Alternatively Known As: PL Range Receptacle, Ex-rated 4 Pin Receptacle, Flameproof Electrical Receptacle, Mining Grade Receptacle
Technical Specifications
- Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by qualified personnel trained in hazardous area electrical equipment installation to ensure compliance with safety standards.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 660V 425A 4P Receptacle Orange wW Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial environments requiring robust and flameproof electrical connections.
