PL Comp Ring Kit 10-15mm | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof
The PL Comp Ring Kit 10-15mm is designed for robust electrical connections in hazardous environments, featuring a voltage range of 660V to 3300V and IP55 ingress protection. Ideal for mining and tunnelling applications, it offers quick release functionality and durable stainless steel construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

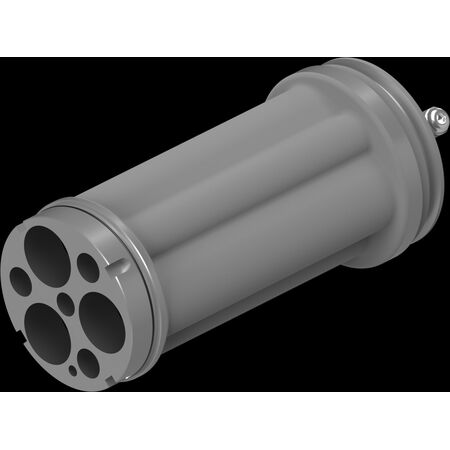

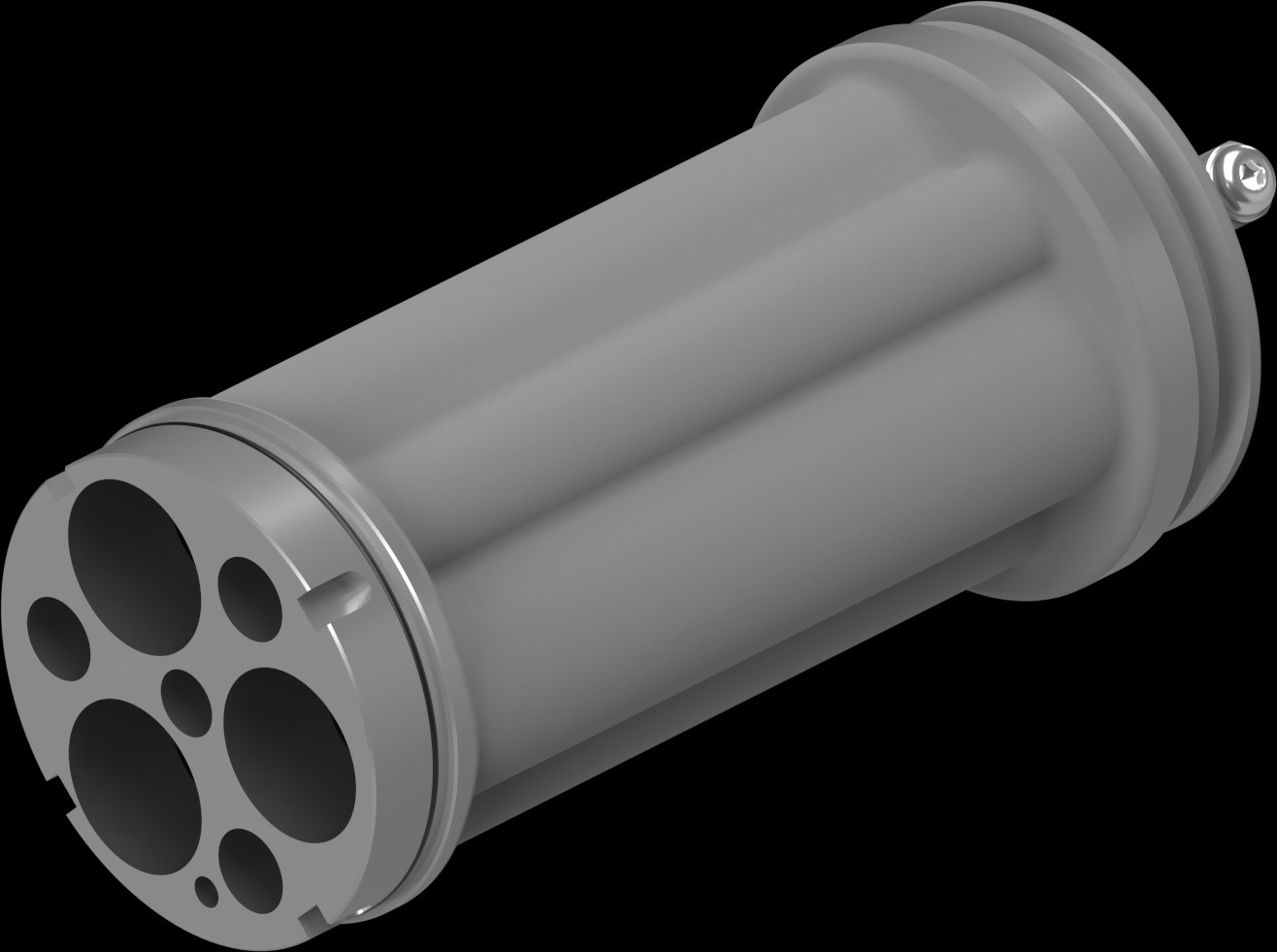

Product Name/Title: PL Comp Ring Kit 10-15mm
Brand: Ausproof
SKU: RS2212
Alternatively Known As: PL Range Plug and Receptacle Kit, Ex-certified Stainless Steel Plug, Mining Plug Kit, Flameproof Plug and Receptacle
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Configurations: 4-pin or 6-pin
- Weight: Receptacle 10.7kg, Plug 9.0kg
- Dimensions (H x L x W): 150mm x 150mm x 150mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Flameproof repairability reduces disposal and replacement of entire units.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL Comp Ring Kit 10-15mm is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
