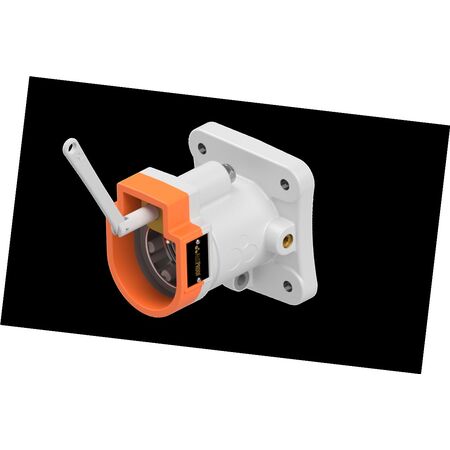

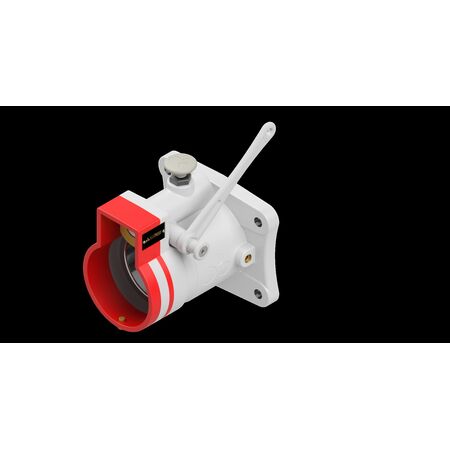

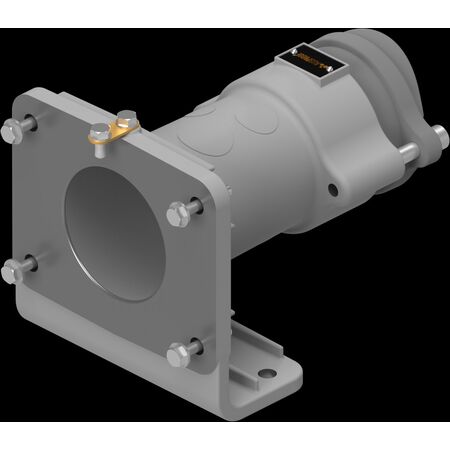

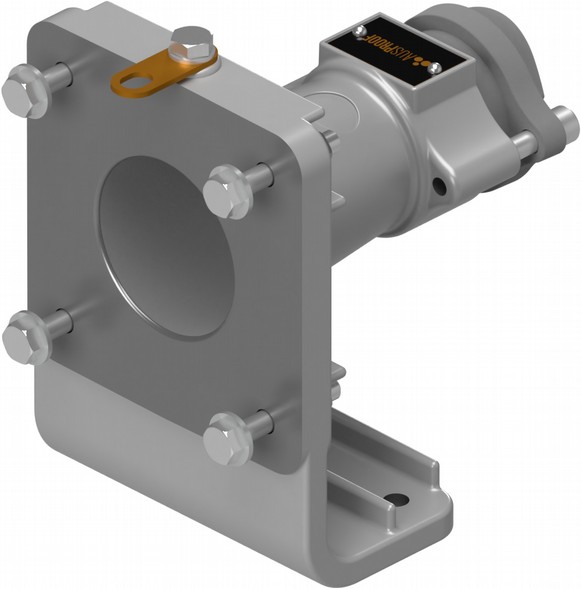

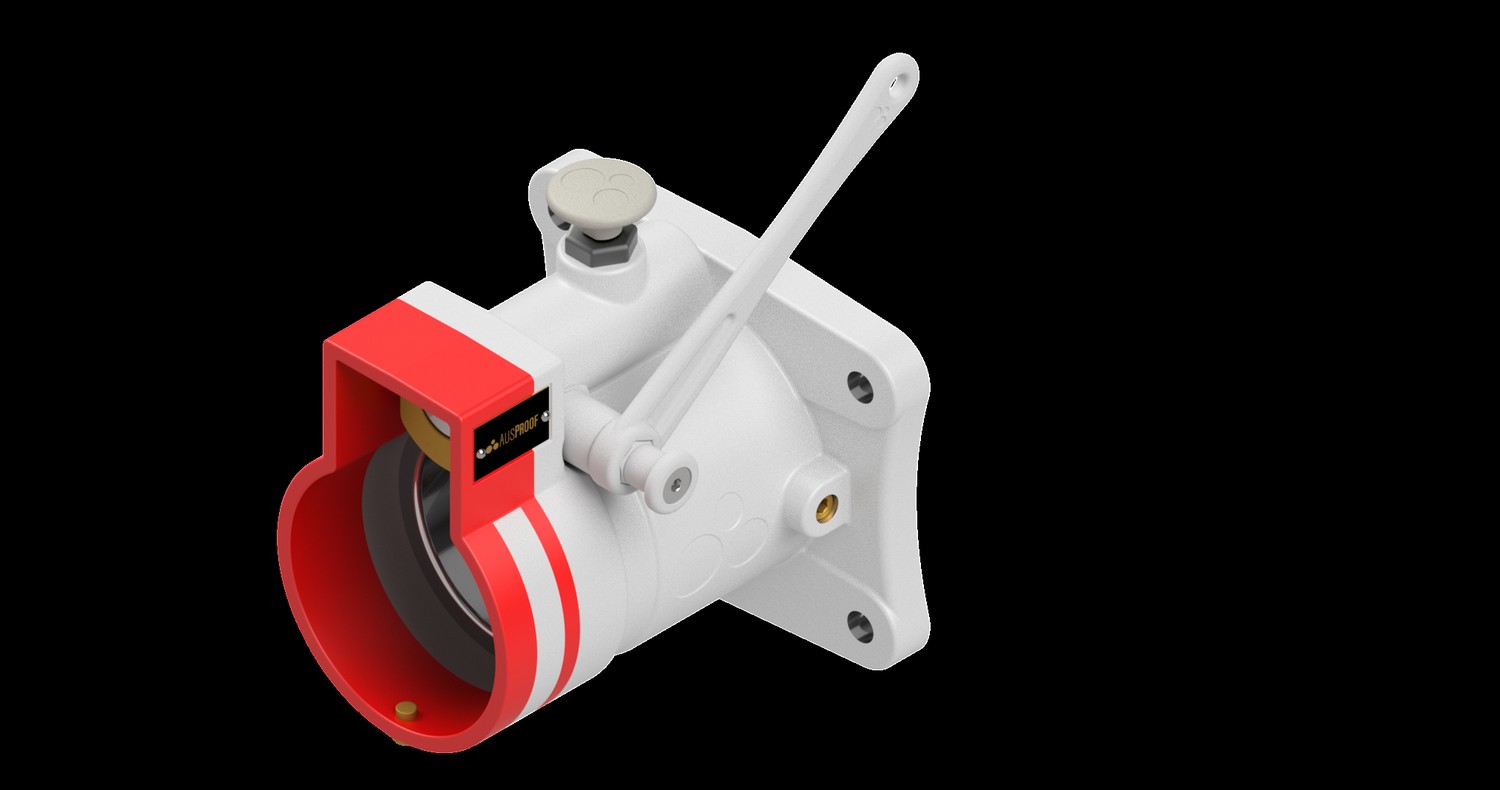

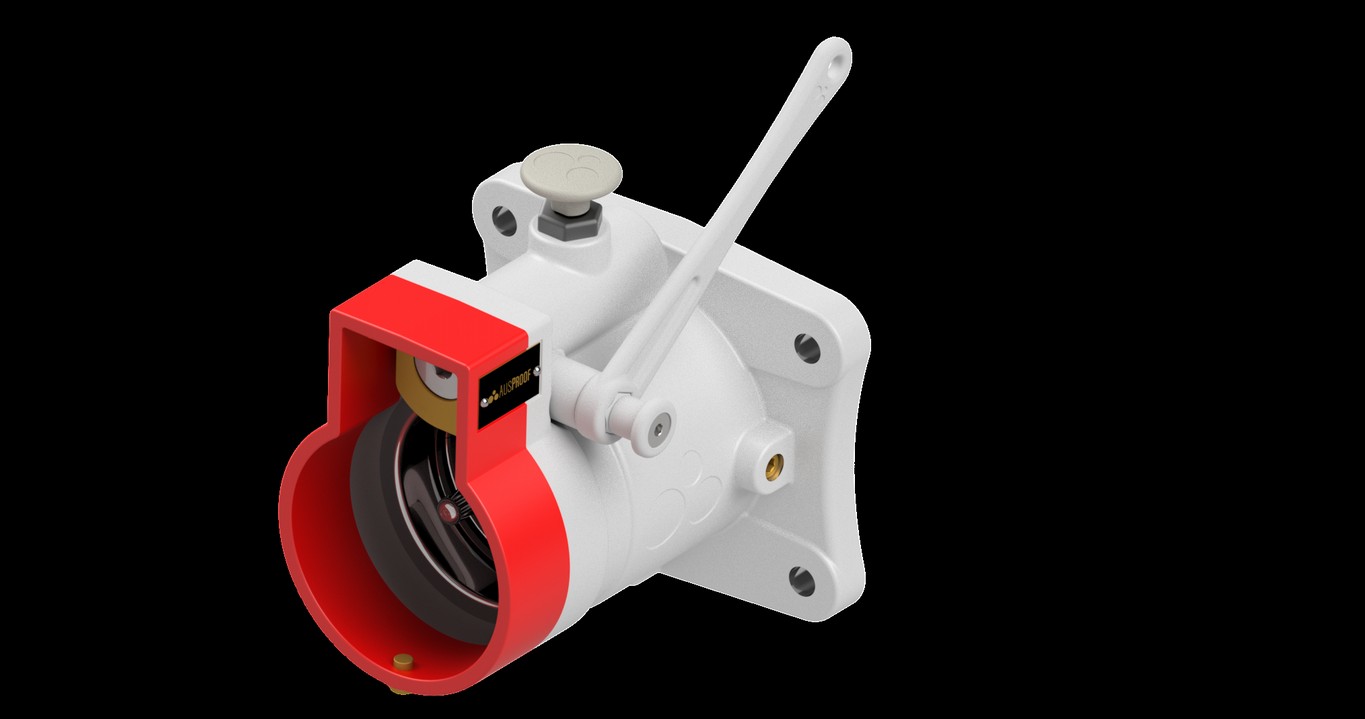

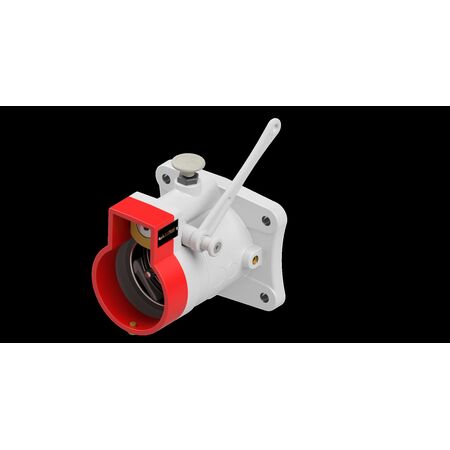

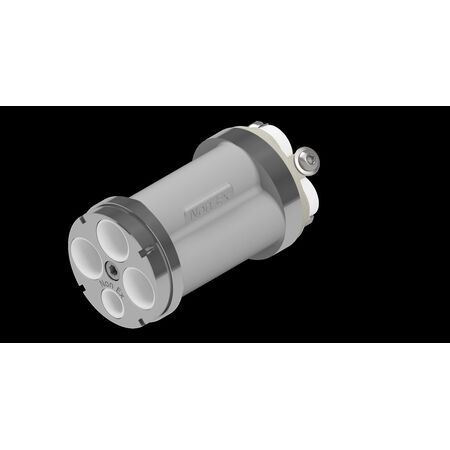

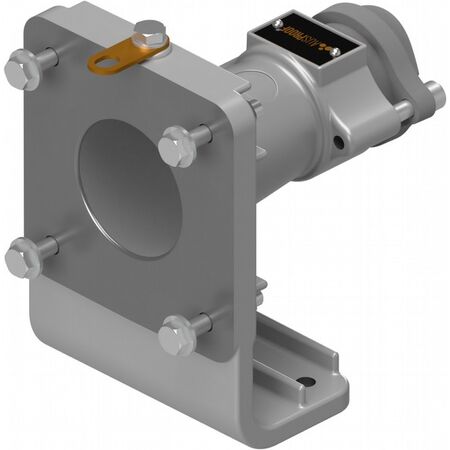

PL Comp Ring Kit 30-35mm | 660V to 3300V | IP55 Rated | Quick Release Mechanism by Ausproof

BRAND: Ausproof

SKU: RS1618

$83.90 List price: $104.20

+ −

30 Days Return Delivery Options

The PL Comp Ring Kit 30-35mm is designed for hazardous environments, featuring a voltage range of 660V to 3300V and IP55 ingress protection. Ideal for mining and industrial applications, it offers a quick release mechanism and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL Comp Ring Kit 30-35mm

Brand: Ausproof

SKU: RS1618

Alternatively Known As: Ex-certified plug and receptacle kit, Flameproof electrical connector, Mining electrical plug, Hazardous area plug, Stainless steel industrial plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Ratings: 300A and 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Receptacle Weight: 10.7 kg
Dimensions (H x L x W): 150mm x 200mm x 150mm
Weight: 10.7 kg

Key Features

Quick Release mechanism for ease of use
Single piece contacts to prevent hot joints
Easy termination and flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover included
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance with safety standards and proper flameproof sealing.

Applications

Mining and tunnelling operations
Commercial applications in Group 1 hazardous environments
Industrial low voltage electrical connections requiring flameproof equipment

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof design enhances safety, reducing risk of environmental hazards
Easy on-site repair reduces waste and resource consumption

Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL Comp Ring Kit 30-35mm is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
