PL Comp Ring Kit 45-50mm | 660V to 3300V | IP55 Rated | Quick Release Mechanism by Ausproof
The PL Comp Ring Kit 45-50mm is designed for high-voltage applications, operating between 660V to 3300V with an IP55 rating. Ideal for mining and hazardous environments, it features a quick release mechanism and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

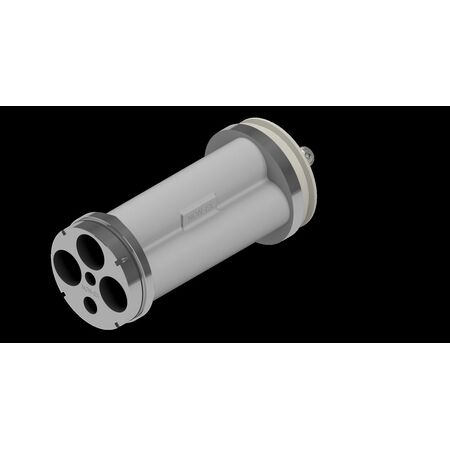

Product Name/Title: PL Comp Ring Kit 45-50mm
Brand: Ausproof
SKU: RS1621
Alternatively Known As: PL Range Plug and Receptacle Kit, Explosion Proof Plug Kit, Mining Electrical Connector, Stainless Steel Ex Plug
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 10.7 kg
Key Features
- Quick Release mechanism
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover

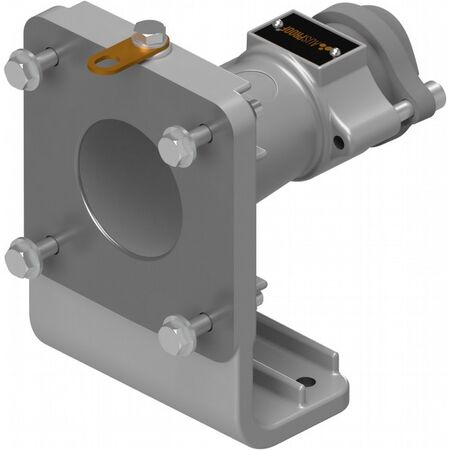

- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining and tunnelling operations
- Commercial applications
- Group 1 hazardous environments requiring explosion-proof electrical connections
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairability reduces waste by allowing on-site repairs
- Lightweight design reduces material usage and transport emissions
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL Comp Ring Kit 45-50mm is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring explosion-proof electrical connections.
