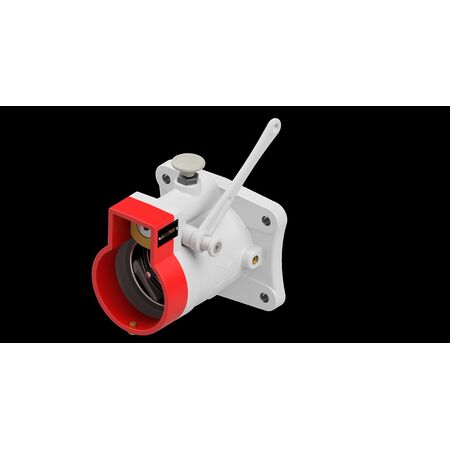

PL Comp Ring Kit 55-60mm | 660V to 3300V | IP55 Rated | Stainless Steel by Ausproof
The PL Comp Ring Kit 55-60mm is designed for robust electrical connections in hazardous environments, featuring an operating voltage range of 660V to 3300V and IP55 ingress protection. Ideal for mining and tunnelling applications, this kit ensures safety and reliability with its durable stainless steel construction and quick release feature.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL Comp Ring Kit 55-60mm
Brand: Ausproof
SKU: RS1623
Alternatively Known As: PL Range Plug and Receptacle Kit, Ex-certified Stainless Steel Plug, Mining Plug Kit, Hazardous Area Plug and Socket
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover

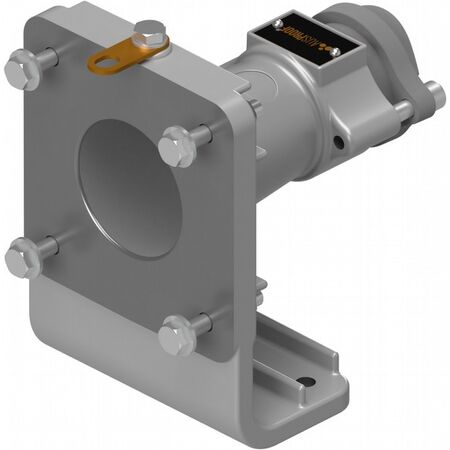

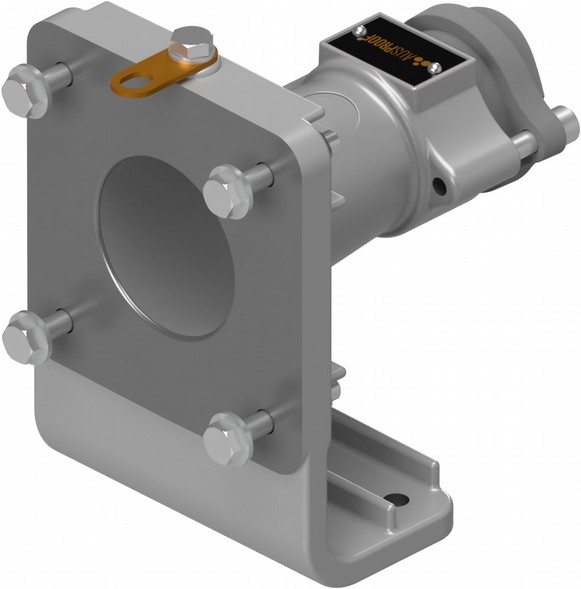

- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Flameproof repairability reduces disposal and replacement frequency.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL Comp Ring Kit 55-60mm is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and certified electrical connections.
