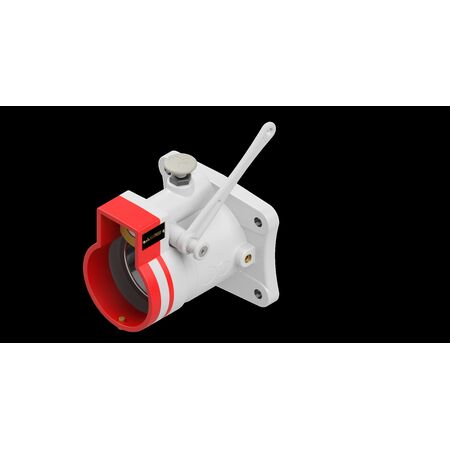

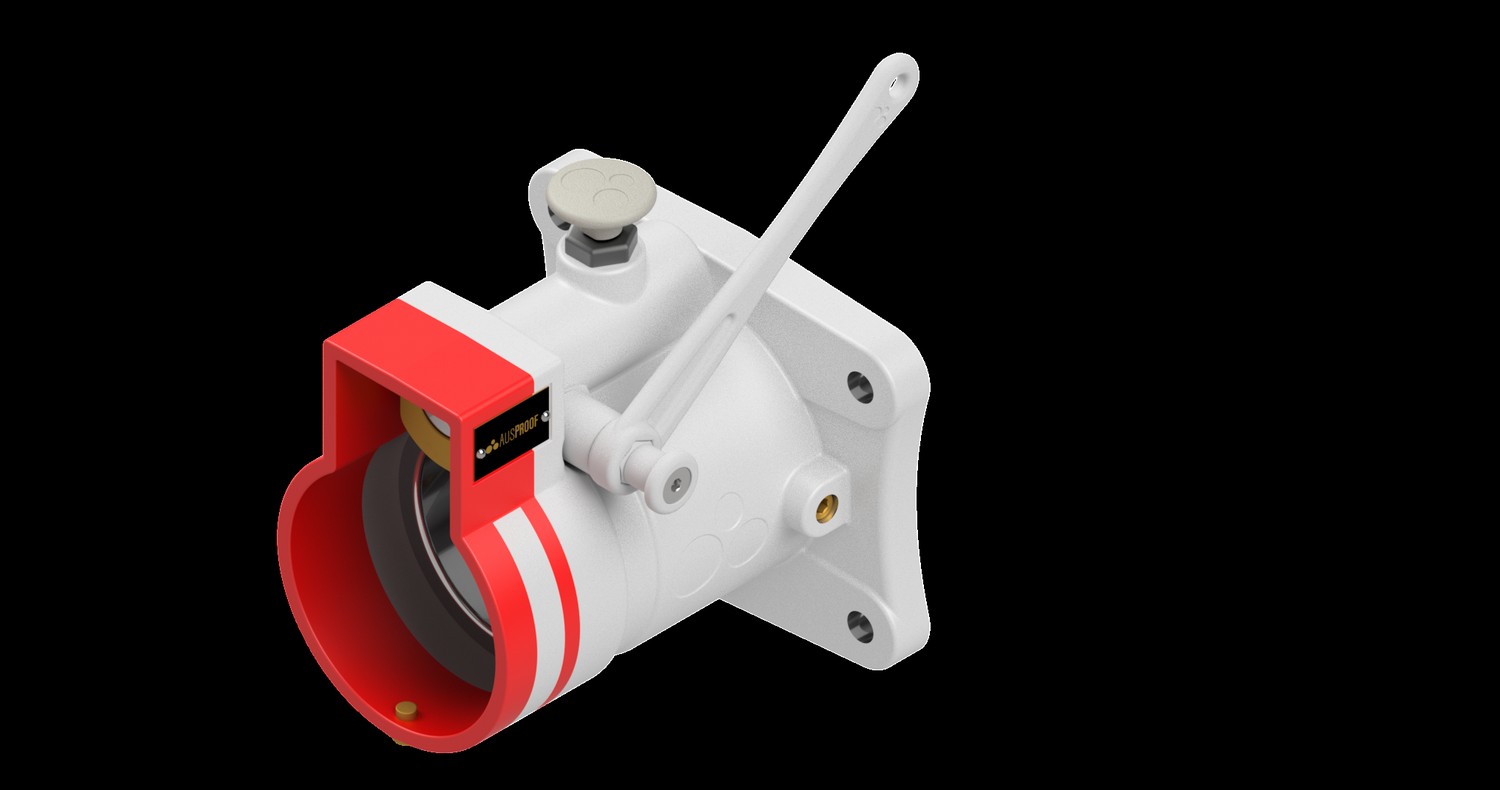

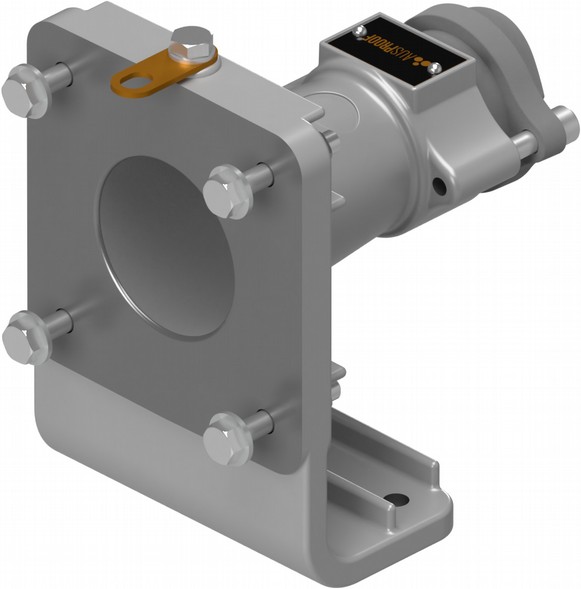

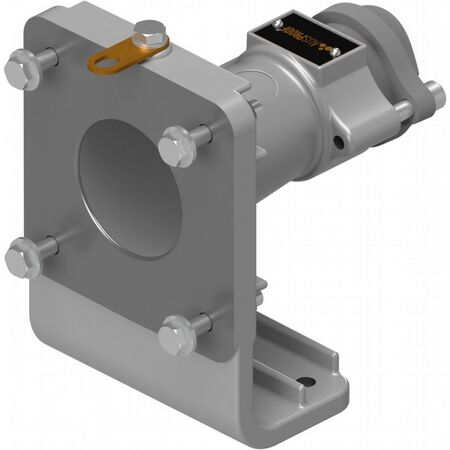

PL Comp Ring Kit 70-75mm | 660V to 3300V | 300A to 425A | IP55 by Ausproof
The PL Comp Ring Kit 70-75mm is designed for robust electrical connections in mining and hazardous environments, featuring a voltage range of 660V to 3300V and a current rating of 300A to 425A. Built for safety and compliance, this stainless steel kit offers quick release and easy termination, making it ideal for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL Comp Ring Kit 70-75mm
Brand: Ausproof
SKU: RS1626
Alternatively Known As: PL Range Plug and Receptacle Kit, Ex-rated Stainless Steel Plug Kit, Mining Electrical Plug Kit
Technical Specifications
- Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 75mm x 75mm x 75mm
- Weight: 9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability reduces waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL Comp Ring Kit 70-75mm is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and certified electrical connections.
