PL QR 660V 425A 4P Receptacle (180) 95-C

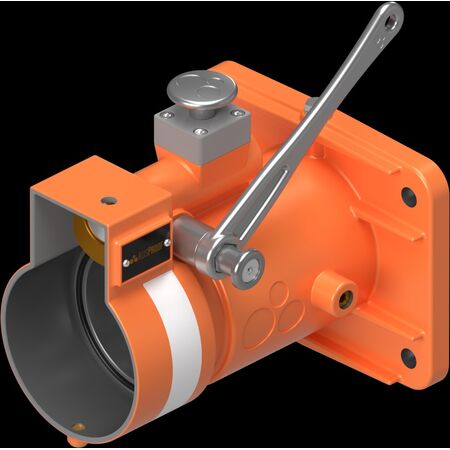

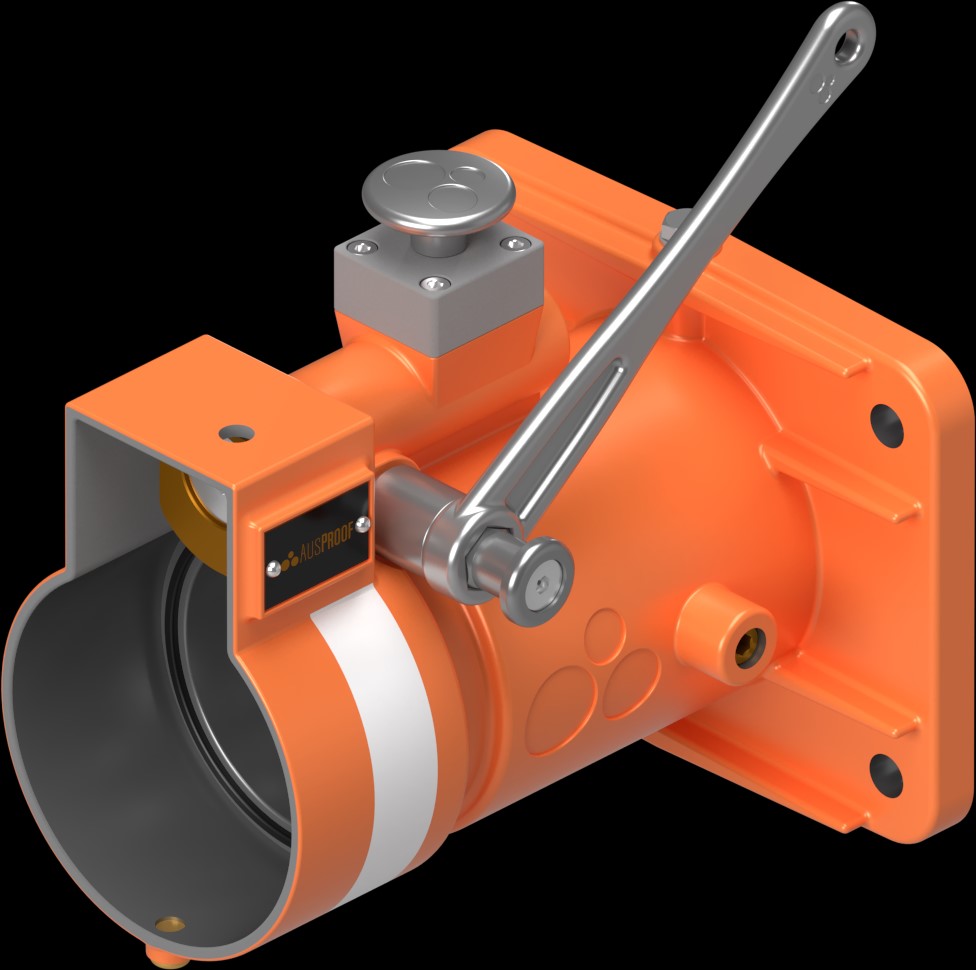

PL QR 660V 425A 4P Receptacle | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1444QR

$1,971.80 List price: $2,448.90

+ −

30 Days Return Delivery Options

The PL QR 660V 425A 4P receptacle is designed for mining and commercial applications, featuring IP55 ingress protection and quick release functionality. Built for safety and durability, it offers easy termination and robust stainless steel construction, making it ideal for hazardous environments.

Description

Product Name/Title: PL QR 660V 425A 4P Receptacle (180) 95-C

Brand: Ausproof

SKU: RS1444QR

Alternatively Known As: PL Range Receptacle, Quick Release Receptacle, Ex-certified Receptacle, Mining Electrical Receptacle

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Receptacle Weight: 10.7 kg
Dimensions (H x L x W): 95mm x 180mm x 180mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electricians experienced with Ex-certified equipment and hazardous environment standards.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy on-site repair reduces waste and downtime.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL QR 660V 425A 4P Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and safe electrical connections.
