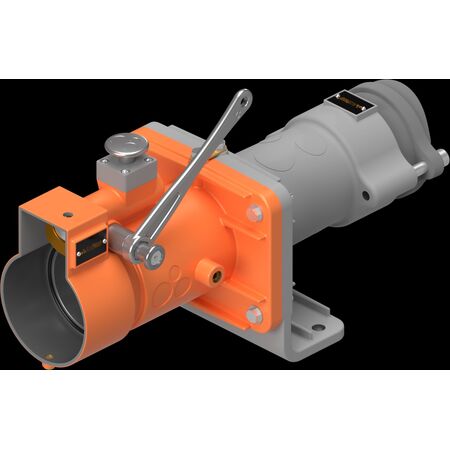

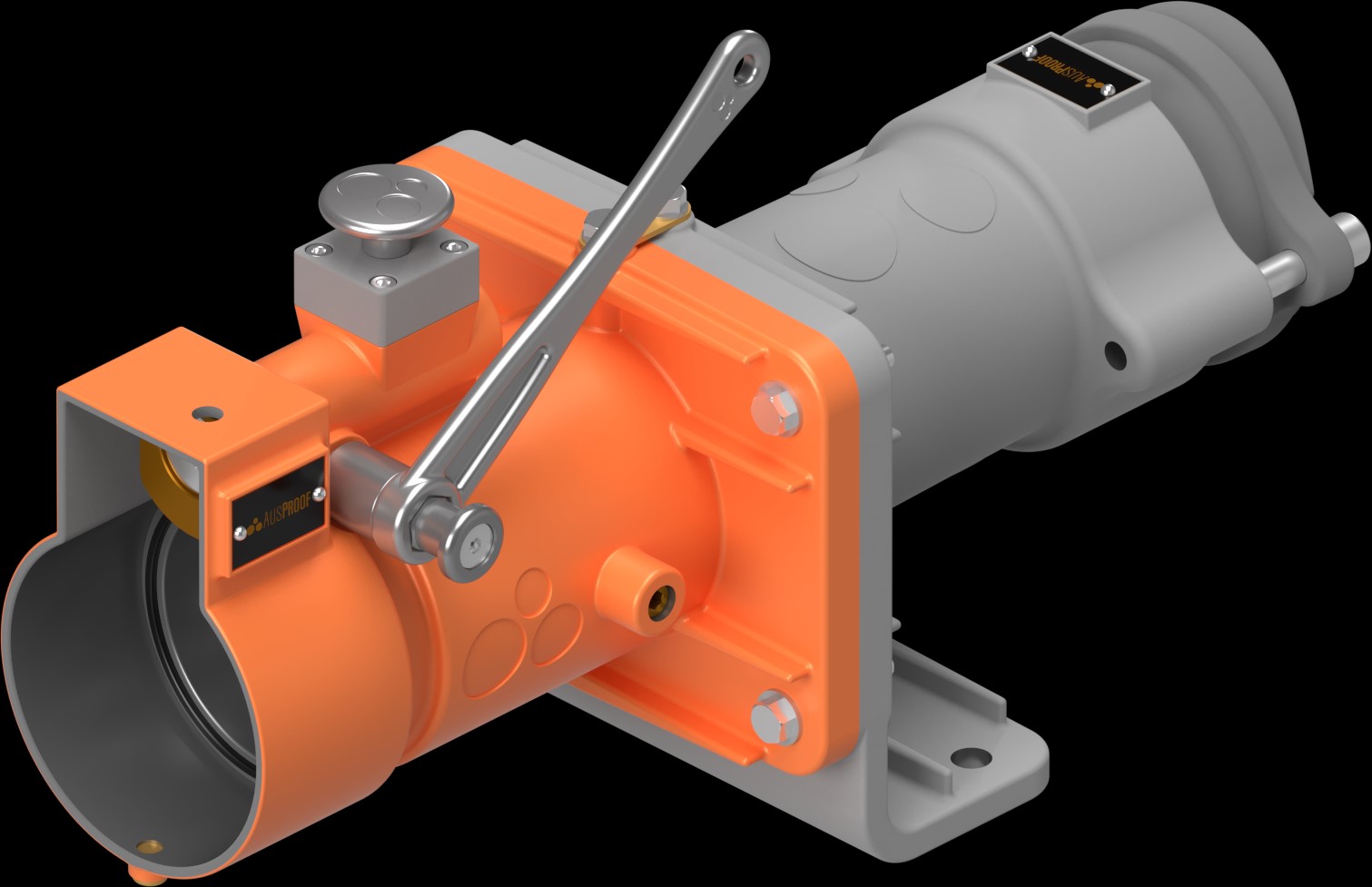

PL RGB Gland Bracket Body Kit | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof
The PL RGB Gland Bracket Body Kit offers robust electrical connections with an operating voltage range of 660V to 3300V and IP55 ingress protection—ideal for mining and hazardous environments. Built for professional installation, it features quick release and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL RGB Gland Bracket Body Kit
Brand: Ausproof
SKU: RS2510
Alternatively Known As: PL Range Gland Bracket, Ex-rated Gland Bracket, Flameproof Gland Bracket, Mining Gland Bracket
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: 10.7 kg for receptacle
- Dimensions (H x L x W): 150mm x 300mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability reduces waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL RGB Gland Bracket Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust Ex-certified electrical connections.
