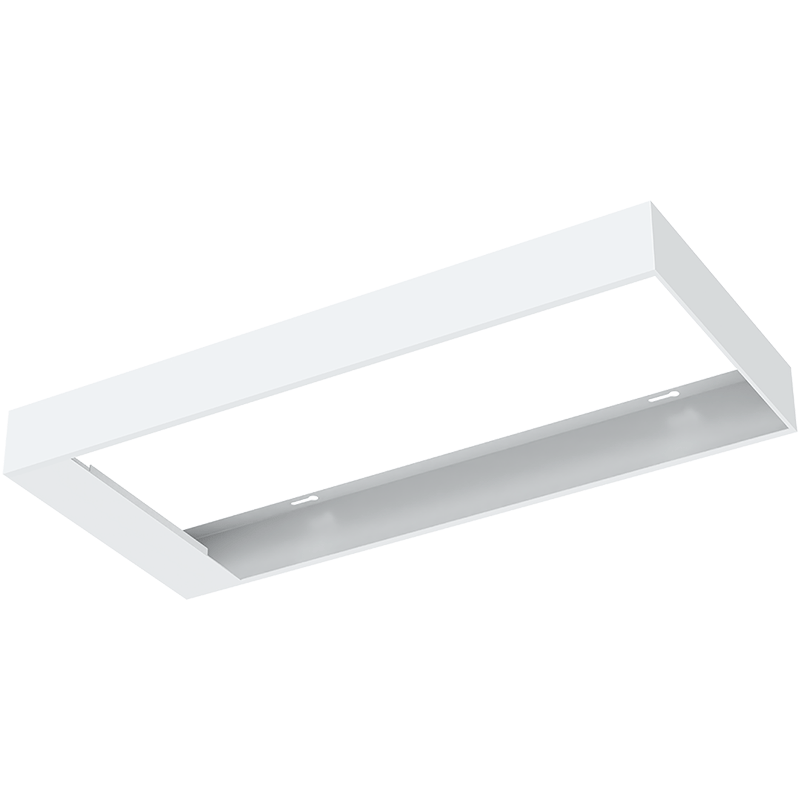

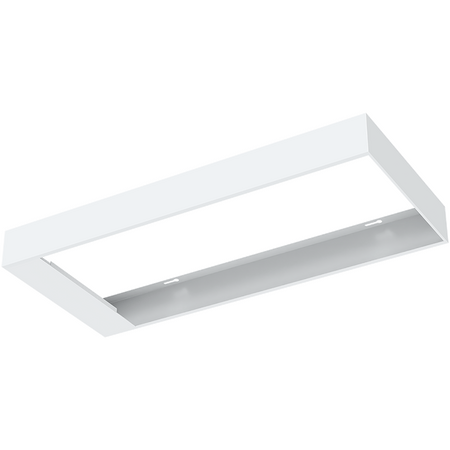

'Plaster Recess One Piece Frame to Suit 300x600mm Panel Haneco'

BRAND: Haneco
SKU: PLRF0306
$68.70 List price: $91.50
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco plaster recess frame features one piece design, 300x600mm panel fit and a flush finish. Ideal for plasterboard ceiling panel installs.'

Alternatively Known As: Haneco plaster recess frame, recessed panel mounting frame, plasterboard ceiling panel frame

Technical Specifications
  • Product Code: PLRF0306
  • Panel Size: 300 x 600 mm
  • Overall Frame Size: 330 x 630 mm
  • Frame Depth: 41 mm
  • Material: Steel
  • Finish: Powder-coated white
  • Installation: Fixings included
  • Design: One-piece recessed mounting frame
  • Dimensions (H x L x W): 41mm x 630mm x 330mm
  • Weight: 0.72 kg
Key Features
  • Designed for 300 x 600 mm Haneco panel lights
  • One-piece construction for straightforward installation
  • Provides a flush finish within plasterboard ceilings
  • Powder-coated white steel construction
  • Supplied with fixing hardware
  • Suitable for recessed LED panel installations
Applications
  • Recessed installation of 300 x 600 mm LED panels in plasterboard ceilings
  • Commercial lighting fit-outs
  • Office, retail and educational ceiling installations
  • New-build and refurbishment projects requiring a flush panel finish
Standards & Compliance
  • AS/NZS 2589:2017 may apply to the application and finishing of the surrounding gypsum plasterboard ceiling; no separate product certification was identified for the frame.
Environmental Benefits
  • Steel is widely recyclable at end of service life
  • Durable powder-coated construction can reduce replacement frequency and material waste
  • Enables recessed LED panel installations, supporting use of energy-efficient lighting systems
Warranty Information

Covered by Haneco’s standard product warranty against manufacturing defects for 3 years from purchase, unless otherwise stated. Warranty is generally provided by replacement through the original supplier, subject to Haneco’s terms and conditions.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
