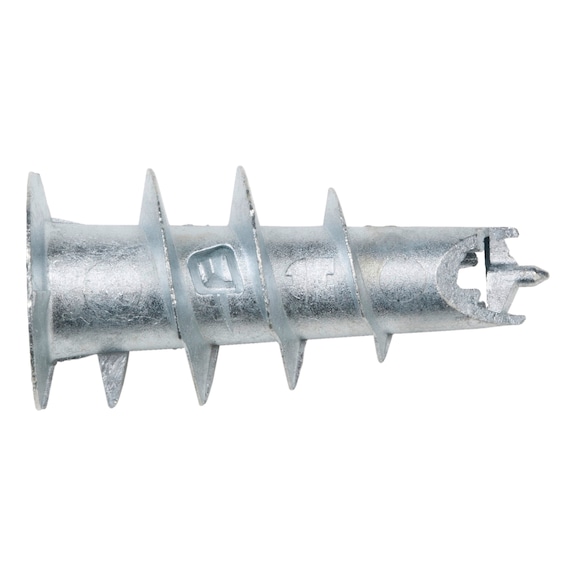

Plasterboard Plug W GS Type ZD | Die-Cast Zinc | Quick Installation | @Pack of 50 | by Wurth
Plasterboard Plug W GS Type ZD is designed for quick and easy installation in gypsum plasterboard and gypsum fibreboard. Made from durable die-cast zinc, it requires no pre-drilling and is compatible with various screw types, making it ideal for both professionals and DIY enthusiasts. This pack of 50 ensures you have plenty on hand for your projects, providing reliable fixing without the hassle.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: W-GS/ZD
- Anchor length: 33 mm
- Material: Die-cast zinc
- Required particle-board screw diameter: 4.5 mm
- Hole diameter in component: 6.5 mm
- Minimum component thickness: 9.5 mm
- Max. attachment height dependent on screw length
- Minimum temperature resistance: -40 °C
- Maximum temperature resistance: 80 °C
- Edge clearance: 50 mm
- Centre-to-centre distance: 100 mm
- Dimensions (H x L x W): 33mm x 33mm x 33mm
- Weight: 0.05 kg
Key Features
- High die-cast zinc quality for durability
- Quick and easy installation without pre-drilling or setting tools
- Attachment via mechanical interlock
- Compatible with cordless screwdrivers and suitable bits (PZ, AW, TX)
- Minimal space required behind panel (only 15 mm)
- Same bit can be used for plasterboard plug and screw
- Lathe centre enables easy positioning and drilling into the panel
Professional Installation Requirements
- Installation should be performed by a qualified tradesperson familiar with plasterboard fixing techniques to ensure secure and safe mounting.
Applications
- Installation in gypsum plasterboard and gypsum fibreboard
- Suitable for mounting components with wood screws or chipboard screws
- Ideal for quick and easy fixing without pre-drilling or additional setting tools
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable die-cast zinc material reduces need for frequent replacements
- Enables secure installations reducing waste from failed fixings
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Plasterboard Plug W GS Type ZD is available for immediate purchase, ideal for fast and reliable fixing in plasterboard and gypsum fibreboard applications.
