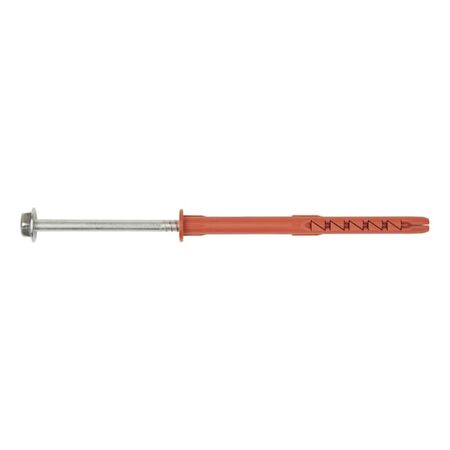

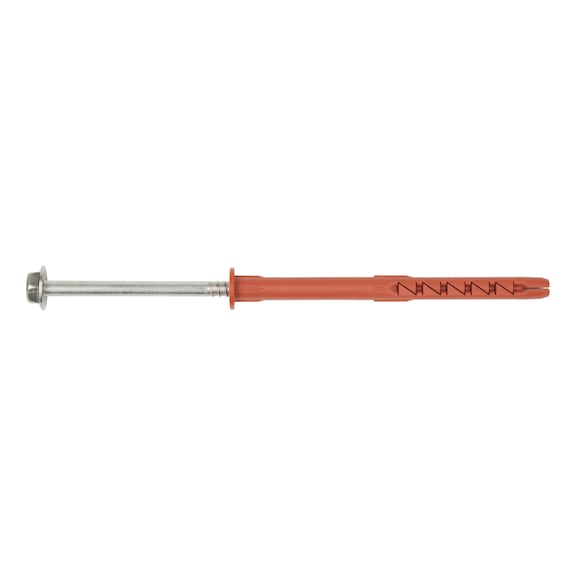

Plastic Anchor with A4 Stainless Steel Screw W-UR 10 | High Load Capacity | Pre-assembled for Easy Installation | @Pack of 40 | by Wurth
Plastic anchors with A4 stainless steel screws are designed for high load capacity, making them ideal for construction and building fastening applications. Pre-assembled for easy installation, these anchors provide immediate load capacity without waiting, ensuring secure fastening in both hollow and solid materials. With a durable design that minimizes movement post-installation, they are perfect for professional use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Anchor with A4 Stainless Steel Screw W-UR 10 | High Load Capacity | Pre-assembled for Easy Installation | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 912810702
Alternatively Known As: Plastic wall anchor, heavy duty plastic anchor, stainless steel screw anchor, W-UR anchor, polyamide anchor with screw
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Screw material: Stainless steel A4
- Internal drive: AW40
- Screw surface: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10 A4, hexagonal bolt
- Dimensions (H x L x W): 100mm x 10.5mm x 10mm
- Weight: 0.05 kg
Key Features
- Plastic anchor approved for high loads with special A4 stainless steel screw
- Hexagon head bolt with Symcon thread for secure fastening
- Anchoring by friction lock between anchor body and support sleeve made of high-quality polyamide
- Pass-through mounting with immediate load capacity, no waiting required
- Virtually no movement of the anchor sleeve after installation
- Low insertion torque of the frame screw
- Slight spreading of the anchor for high-strength screw lock
- Expands in four directions for improved force transmission
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Pre-assembled anchor sleeve and special screw to reduce installation labor
- Removes need for additional U-washer and prevents contact corrosion
- Suitable for installation temperatures: anchor base ≥ -20 °C, anchor sleeve ≥ 0 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchoring and load capacity compliance.
Applications
- Suitable for high load anchoring in hollow and solid building materials
- Ideal for construction and building fastening applications
- Used in installations requiring immediate load capacity without waiting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Corrosion-resistant stainless steel screw extends product lifespan
- Pre-assembled components reduce installation waste and labor
Warranty Information
Wurth provides standard product warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
Wurth Plastic Anchor with A4 Stainless Steel Screw W-UR 10 is available for immediate purchase, ideal for construction and building fastening applications requiring high load capacity and corrosion resistance.
