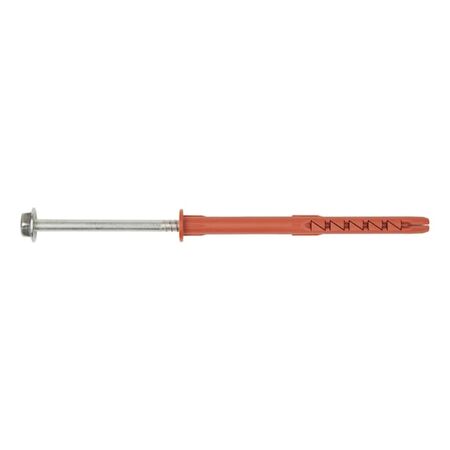

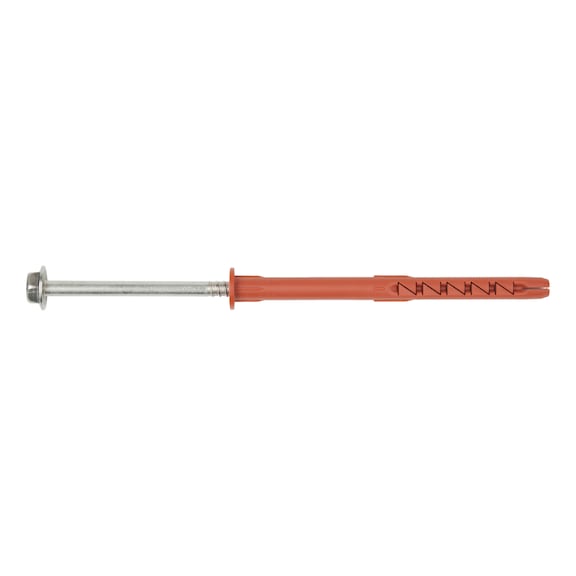

Plastic Anchor with A4 Stainless Steel Screw W-UR 10 | High Load Capacity | @Pack of 40 | by Wurth
The Plastic Anchor with A4 Stainless Steel Screw W-UR 10 is designed for high load anchoring in both hollow and solid materials. Ideal for construction and building fastening applications, this anchor features a unique friction lock for immediate load capacity and a corrosion-resistant stainless steel screw, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Anchor with A4 Stainless Steel Screw W-UR 10 | High Load Capacity | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 912810703
Alternatively Known As: Plastic wall anchor, heavy duty plastic anchor, stainless steel screw anchor, W-UR anchor, Wurth anchor bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 115 mm
- Max. attachment height: 45 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Material of screw: Stainless steel A4
- Internal drive: AW40
- Surface of screw: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10 A4, hexagonal bolt
- Dimensions (H x L x W): 115mm x 115mm x 10mm
- Weight: 0.1 kg
Key Features
- Plastic anchor approved for high loads with special A4 stainless steel screw
- Hexagon head bolt with Symcon thread for secure fastening
- Anchoring by friction lock between anchor body and support sleeve made of high-quality polyamide
- Pass-through mounting with immediate load capacity, no waiting required
- Virtually no movement of the anchor sleeve after installation
- Low insertion torque of the frame screw
- Slight spreading of the anchor for high-strength screw lock
- Expands in four directions for improved force transmission
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Pre-assembled anchor sleeve and special screw to reduce installation labor
- Removes need for additional U-washer and prevents contact corrosion
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper anchoring and load capacity.
Applications
- Suitable for high load anchoring in hollow and solid building materials
- Ideal for construction and building fastening applications
- Used in installations requiring immediate load capacity without waiting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Corrosion-resistant stainless steel screw extends product life
- Efficient installation reduces labor and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Plastic Anchor with A4 Stainless Steel Screw W-UR 10 is available for immediate purchase, ideal for high load fastening in construction and building projects.
