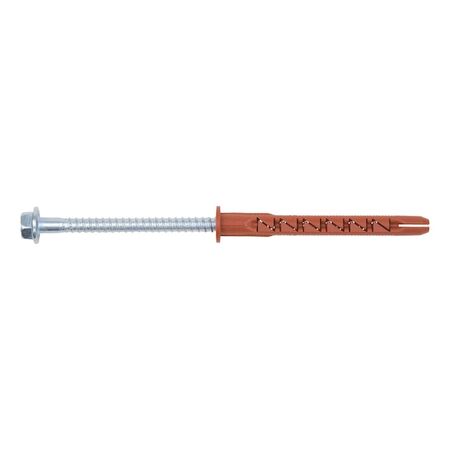

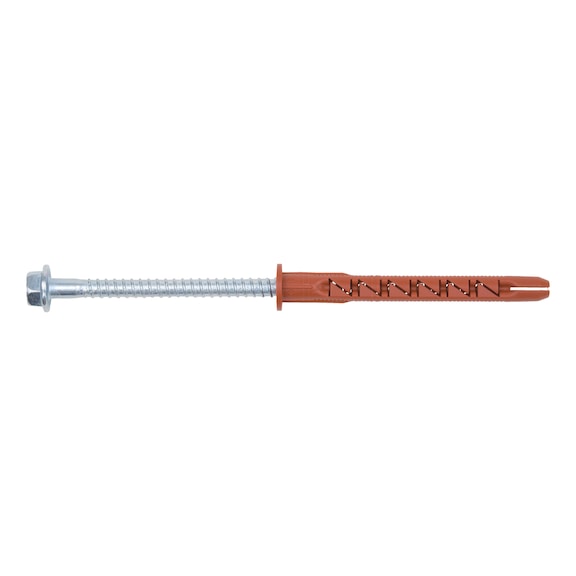

Plastic Anchor for Frames W UR F 8 | Galvanised Steel | Hexagonal Head | ETA Approved | @Pack of 50 | by Wurth
Plastic Anchor for Frames W UR F 8 is designed for versatile frame fixing in various materials, including concrete and masonry. With a robust galvanised steel construction and ETA approval, it ensures high load-bearing capacity and immediate installation without waiting. Ideal for professional tradespeople, this anchor provides reliable performance across over 90 types of stone and autoclaved aerated concrete.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Anchor for Frames W UR F 8 | Galvanised Steel | Hexagonal Head | ETA Approved | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808605
Alternatively Known As: Frame Anchor W UR F8, Galvanised Steel Frame Anchor, Wurth Frame Fixing Anchor, Hexagonal Head Frame Anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 120 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter in component: 8.5 mm
- Attachment height: 70 mm
- Material of screw: Steel
- Internal drive: AW25
- Surface of screw: Zinc plated
- Head type: Hexagon head
- Approval: ETA-08/0190
- Type description: W-UR F 8, hexagonal bolt
- Dimensions (H x L x W): 120mm x 120mm x 8mm
- Weight: 0.15 kg
Key Features
- Extremely versatile frame anchor with ETA approval
- Tested and approved for over 90 types of stone and autoclaved aerated concrete
- Includes zinc plated steel hexagonal head screw and galvanised steel hexagon head bolt with lock washer
- Can be installed directly with immediate load capacity, no waiting required
- Low anchor screw insertion torque with slight anchor expansion and virtually no movement of the anchor sleeve
- Two insertion depths (50 mm + 70 mm)
- Expands in four directions for high load-bearing capacity
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Special pre-assembled anchor and screw for easier installation
- Does not require an additional U-washer and prevents contact corrosion
- Improved load transfer in solid and hollow construction materials via friction locking
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct anchor placement and load capacity.
Applications
- Frame fixing in concrete, perforated brick, solid brick, masonry, and autoclaved aerated concrete
- Suitable for over 90 types of stone and autoclaved aerated concrete
- Universal frame fixing for construction and building applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable galvanised steel construction reduces need for frequent replacements
- Improved load distribution minimizes material stress and potential damage
Warranty Information
Warranty as per Wurth standard terms and conditions; covers manufacturing defects.
Available Now
The Wurth Plastic Anchor for Frames W UR F 8 is available for immediate purchase, ideal for construction and building frame fixing applications.
