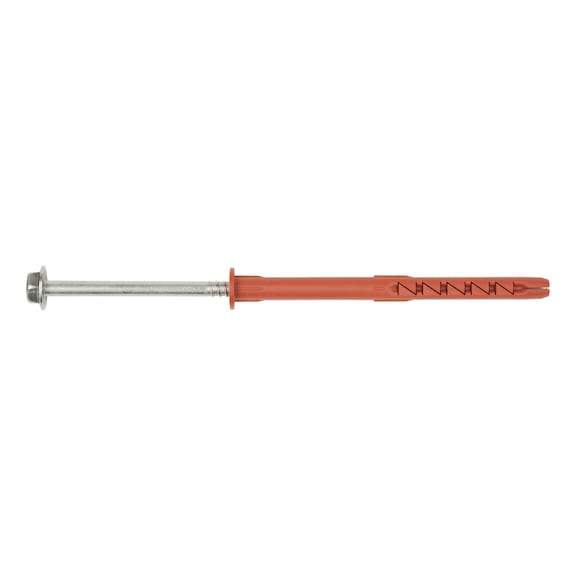

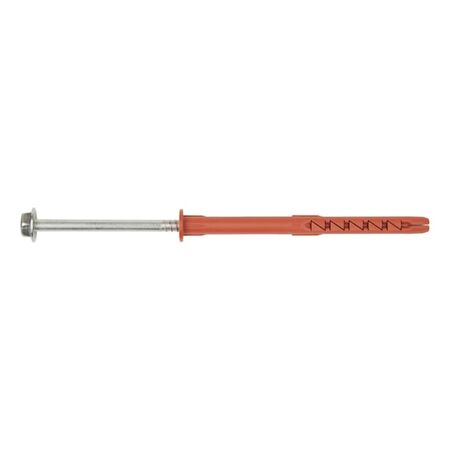

Plastic Anchor with Screw W-UR 10 A4 Stainless Steel High Load Capacity Wurth
Plastic anchor with screw W-UR 10 is designed for high load-bearing applications, featuring a durable A4 stainless steel screw and a pre-assembled design for quick
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 160 mm
- Max. attachment height: 90 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Material of screw: Stainless steel A4
- Internal drive: AW40
- Surface of the screw: Plain
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10 A4, hexagonal bolt
- Dimensions (H x L x W): 160mm x 160mm x 10mm
- Weight: 0.1 kg
Key Features
- Plastic anchor approved for high loads with special A4 stainless steel screw
- Hexagon head bolt with Symcon thread for secure fastening
- Anchoring by friction lock between anchor body and support sleeve made of high-quality polyamide
- Pass-through mounting with immediate load capacity, no waiting required
- Virtually no movement of the anchor sleeve after installation
- Low insertion torque of the frame screw
- Slight spreading of the anchor for secure hold
- High-strength screw lock with high load-bearing capacities
- Expands in four directions for improved force transmission
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Anchor sleeve and special screw are pre-assembled to reduce installation labor
- Removes need for additional U-washer and prevents contact corrosion
- Suitable for installation temperatures: anchor base ≥ -20 °C, anchor sleeve ≥ 0 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchoring and load capacity.
Applications
- Suitable for anchoring in hollow and solid building materials
- Ideal for high load-bearing fastening in construction and building projects
- Used in installations requiring immediate load capacity without waiting time
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Corrosion-resistant stainless steel screw extends product lifespan
- Pre-assembled design reduces installation waste and labor
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for construction and building fastening applications.
