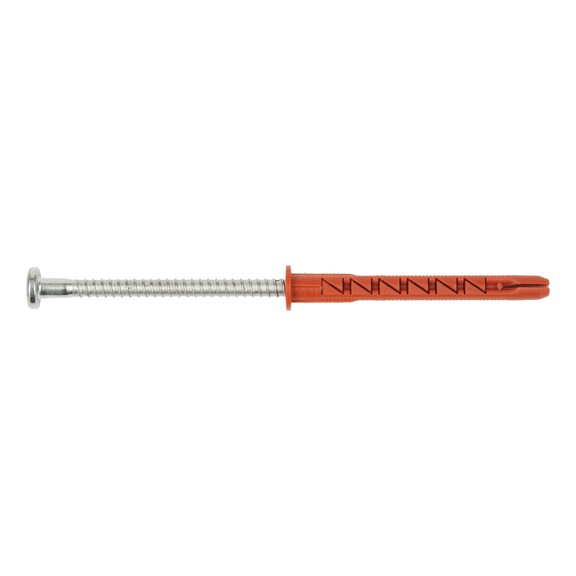

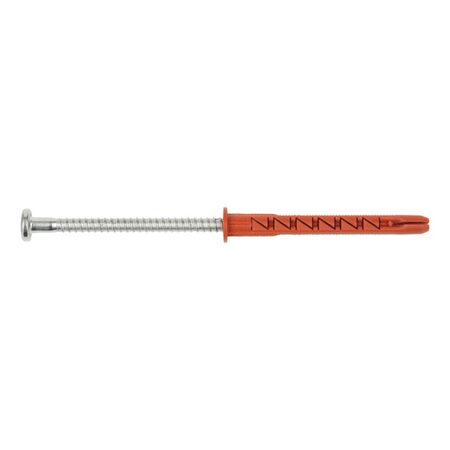

Plastic Anchor with Screw W-UR F 8 | 8mm Diameter | A4 Stainless Steel | ETA Approved | @Pack of 50 | by Wurth
Plastic Anchor with Screw W-UR F 8 is designed for reliable fastening in concrete, brick masonry, and aerated concrete. With an 8mm diameter and A4 stainless steel construction, it offers immediate load-bearing capacity and is ETA approved for over 90 types of stone. Ideal for construction projects, this versatile anchor ensures high load distribution and minimal sleeve movement for secure installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Anchor with Screw W-UR F 8 | 8mm Diameter | A4 Stainless Steel | ETA Approved | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808903
Alternatively Known As: Plastic wall anchor, frame anchor with screw, masonry anchor, W-UR F 8 anchor, stainless steel screw anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 80 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter in component: 8.5 mm
- Attachment height: 30 mm
- Material of screw: Stainless steel A4
- Internal drive: AW30
- Approval: ETA-08/0190
- Type description: W-UR F 8 A4, pan head screw
- Dimensions (H x L x W): 80mm x 80mm x 8mm
- Weight: 0.05 kg
Key Features
- Extremely versatile frame anchor with ETA approval.
- Tested and approved for over 90 types of stone and autoclaved aerated concrete.
- Includes A4 stainless steel countersunk head screw.
- Can be installed directly with immediate load-bearing capacity, no waiting required.
- Low insertion torque with slight expansion and minimal sleeve movement.
- Expands in four directions for high load-bearing capacity and even load distribution.
- Universal frame anchor suitable for concrete, perforated and solid brick masonry, and aerated concrete.
- Internal notch prevents premature spreading during installation.
- Pre-assembled anchor sleeve and special screw for easier installation.
- Does not require an additional U-washer and prevents contact corrosion.
- Improved force transmission in hollow and solid construction materials via friction locking.
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drilling, insertion, and load-bearing performance.
Applications
- Suitable for use in concrete, perforated and solid brick masonry, aerated concrete, and various types of stone.
- Ideal for fastening in construction and building projects requiring reliable load-bearing anchors.
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Corrosion-resistant stainless steel screws extend product lifespan.
Warranty Information
Wurth offers standard manufacturer warranty covering defects in materials and workmanship.
Available Now
The Wurth Plastic Anchor with Screw W-UR F 8 50 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure masonry fastening.
