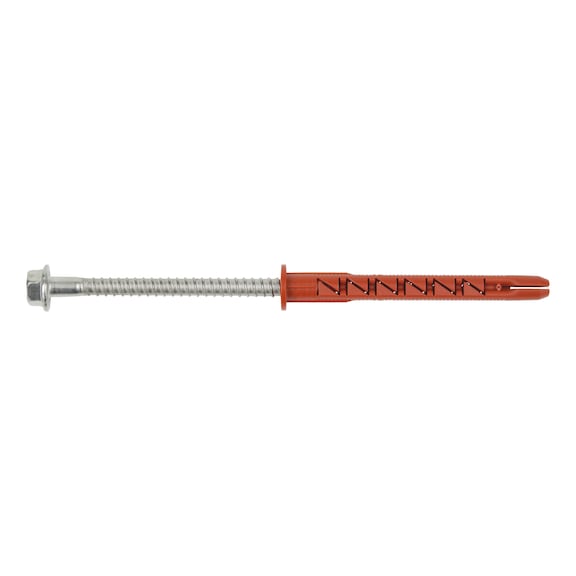

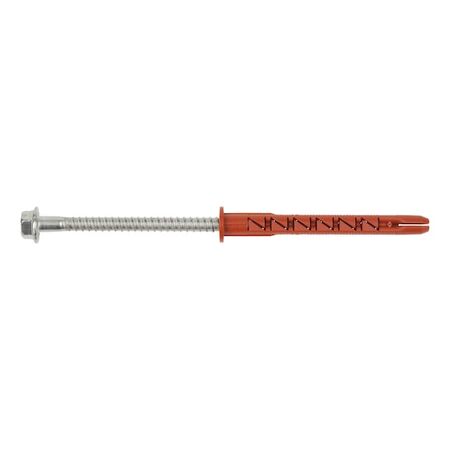

Plastic Anchor with Screw W UR 8 A4 | 8mm Diameter | ETA Approved | @Pack of 50 | by Wurth
Plastic anchors with screws W UR 8 A4 are designed for reliable fastening in various masonry materials. With an 8mm diameter and 60mm length, these ETA-approved anchors are perfect for construction applications, providing immediate load-bearing capacity and high durability. The included A4 stainless steel screws ensure optimal performance and resistance to corrosion, making them ideal for both solid and hollow construction materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Anchor with Screw W UR 8 A4 | 8mm Diameter | ETA Approved | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808702
Alternatively Known As: Plastic frame anchor, W-UR F 8 A4 anchor, stainless steel screw anchor, masonry anchor, wall plug with screw
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole in component: 8.5 mm
- Attachment height: 10 mm
- Material of screw: Stainless steel A4
- Approval: ETA-08/0190
- Type description: W-UR F 8 A4, hexagonal bolt
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.05 kg
Key Features
- Extremely versatile frame anchor with ETA approval.
- Tested and approved for over 90 types of stone and autoclaved aerated concrete.
- Includes A4 stainless steel hexagonal head screw with spring washer.
- Can be installed directly with immediate load-bearing capacity, no waiting required.
- Low screw embedding torque for the anchor with minimal anchor movement.
- Expands in four directions for high load-bearing capacity and optimal force transmission.
- Hammer-in stop prevents premature expansion during installation.
- Pre-assembled anchor and special screw for easier installation.
- Does not require an additional U-washer, preventing contact corrosion.
- Improved load transfer via friction locking between anchor sleeve and material.
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper anchoring and load capacity.
Applications
- Suitable for use in concrete, perforated and solid brick masonry, aerated concrete, and various stone types.
- Ideal for fastening in solid and hollow construction materials.
- Used in construction and building applications requiring reliable frame anchoring.
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel components reduce the need for frequent replacements.
- ETA approval ensures compliance with safety and environmental standards.
Warranty Information
Warranty as per Wurth standard terms and conditions; typically covers manufacturing defects.
Available Now
The Wurth Plastic Anchor with Stainless Steel Screw W UR 8 A4 8x60mm 50 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable masonry fastening.
