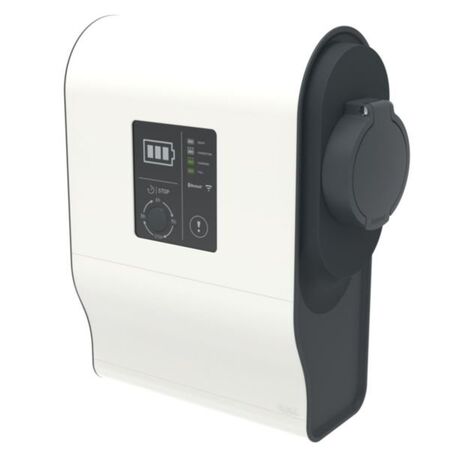

Plastic Charging Station Green'up Premium | 3.7/4.6kW Power | IP44 Rated | Bluetooth Communication | @EA of 1 | by Legrand
The Plastic Charging Station Green'up Premium is designed for efficient electric vehicle charging, featuring a power range of 3.7 to 4.6kW and Bluetooth communication for easy control via smartphone. Ideal for both residential and commercial applications, this station ensures safe and reliable charging with its IP44 rating and robust plastic housing, making it perfect for public and private parking areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Charging Station Green'up Premium | 3.7/4.6kW Power | IP44 Rated | Bluetooth Communication | @EA of 1 | by Legrand
Brand: Legrand
SKU: 058000
Alternatively Known As: Legrand Green'up EV Charger, Legrand Plastic EV Charging Station, Legrand Mode 3 EV Charger 3.7kW, Legrand Single Phase EV Charger
Technical Specifications
- Installation side connection: Single phase
- Nominal connection power: 3.7 kW
- Max power per charging point: 4.6 kW
- Number of charging units: 1
- Number of Type 2 socket outlets: 1
- Housing material: Plastic
- Degree of protection: IP44
- Impact strength: IK08
- Operating temperature: -25 to 50 °C
- Storage temperature: -25 to 70 °C
- Nominal voltage: 220-240 V
- Communication: Bluetooth, OCPP 1.6J
- Programmable with EV Charge app
- With miniature circuit breaker (MCB): Yes
- Dimensions (H x L x W): 365mm x 140mm x 295mm
- Weight: 7 kg
Key Features
- Local wireless communication via Bluetooth for update, configuration, and control via smartphone or tablet app
- Remote IP wireless communication capability with communication kit
- External command by contactor, clock, or switch (dry contact input 12 V=)
- Adjustable power locally or remotely through app or web pages
- Deferred start of charge (3/6/9 hours) via front panel
- Supplied with wall mounting kit; optional floor mounting base available
- Single phase installation side connection
- Nominal connection power 3.7 kW, max power per charging point 4.6 kW
- One Type 2 socket outlet
- Plastic housing with IP44 degree of protection and IK08 impact strength
- Compatible with OCPP 1.6J protocol for interoperability
- Programmable and supports EV Charge app on App Store and Google Play
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper setup.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric cars
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing fossil fuel use and emissions
- Energy-efficient charging with adjustable power settings
- Enables deferred charging to optimize energy consumption and grid load
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Plastic Charging Station Green'up Premium 1Ph is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
