Plastic Charging Station Green'up Premium | 7.4kW Power | Mode 3 Charging | DC Protection | @EA of 1 | by Legrand

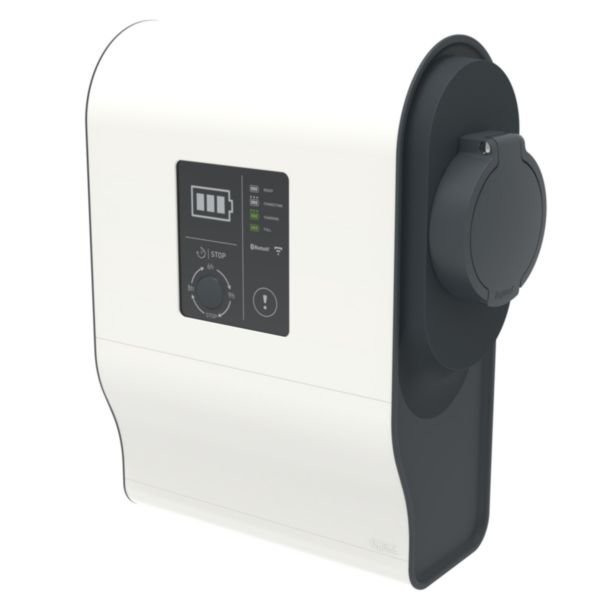

The Plastic Charging Station Green'up Premium is designed for efficient electric vehicle charging, featuring a powerful 7.4kW output and Mode 3 charging capability. Ideal for both residential and commercial use, this station includes DC protection and is programmable via the EV Charge app, ensuring safe and convenient charging for electric cars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Charging Station Green'up Premium | 7.4kW Power | Mode 3 Charging | DC Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 058001
Alternatively Known As: EV Charger 7.4kW, Green'up Premium EV Charging Station, Legrand EV Charger, Single Phase EV Charger, Mode 3 EV Charger
Technical Specifications
- Power: 7.4 kW single-phase
- Current: 32A
- Connection: Mode 3 charging with 1 Type 2 socket outlet
- Communication: Bluetooth, OCPP 1.6J protocol
- Protection: DC leakage protection, miniature circuit breaker included
- Housing: Plastic, IP44 rated, IK08 impact resistance
- Operating temperature: -25°C to 50°C
- Storage temperature: -25°C to 70°C
- Nominal voltage: 220-240 V
- Programmable via EV Charge app (iOS and Android)
- Dimensions (H x L x W): 365mm x 140mm x 295mm
- Weight: 7 kg
Key Features
- Local wireless communication via Bluetooth for update, configuration, and control via smartphone or tablet app.
- Remote IP wireless communication capability with optional communication kit.
- External command input via contactor, clock, or switch (dry contact input 12 V=).
- Adjustable power locally or remotely through app or web interface.
- Deferred start of charging (3/6/9 hours) via front panel control.
- Supplied with wall mounting kit; optional base for floor mounting.
- Single-phase installation with nominal connection power of 7.4 kW.
- Equipped with miniature circuit breaker (MCB).
- Housing made of durable plastic with IP44 protection and IK08 impact resistance.
- Compatible with EV Charge app available on App Store and Google Play Store.
- Programmable and interoperable with OCPP 1.6J protocol.
Professional Installation Requirements
- Installation must be performed by a qualified electrician in compliance with local electrical standards and regulations.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric cars
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing fossil fuel consumption and emissions.
- Energy-efficient charging with adjustable power settings to optimize electricity use.
- Enables deferred charging to utilize off-peak electricity, reducing grid load and promoting renewable energy use.
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Plastic Charging Station Green'up Premium 1Ph 7.4kW with DC Protection is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
