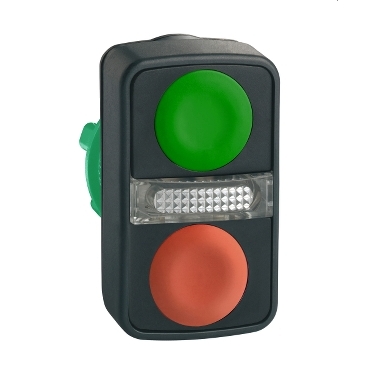

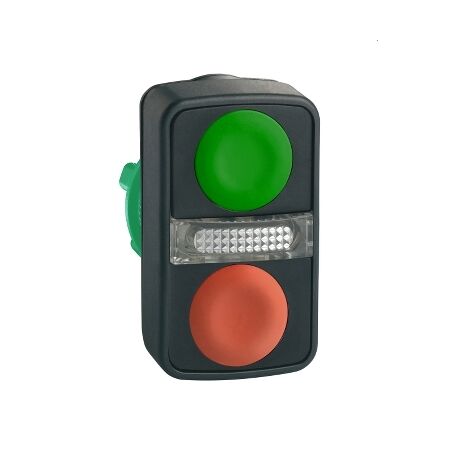

Plastic Double Headed Pushbutton | Illuminated Pilot Light | 22mm Mounting | by Clipsal
The Plastic Double Headed Pushbutton is designed for industrial control panels, featuring an illuminated pilot light and a 22mm mounting diameter. With one green and one red flush button, this durable plastic pushbutton is perfect for machinery operation and automation systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Double Headed Pushbutton | Illuminated Pilot Light | 22mm Mounting | by Clipsal
Brand: Clipsal
SKU: SCHZB5AW7A3740
Alternatively Known As: Double Headed Pushbutton, Harmony XB5 Pushbutton, Illuminated Double Pushbutton, Clipsal SCHZB5AW7A3740, Industrial Control Pushbutton
Technical Specifications
- Mounting diameter: 22mm
- Material: Plastic
- Button colors: 1 green flush, 1 red flush
- Illumination: 1 pilot light (LED)
- Head type: Unmarked
- Series: Harmony XB5
- Ingress protection: IP66 (front face)
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 50mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Double headed pushbutton with illuminated pilot light
- 22mm diameter mounting
- 1 green flush button, 1 red flush button, 1 pilot light
- Plastic construction for durability and insulation
- Unmarked heads for flexible application
- Harmony XB5 series compatibility
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and correct operation.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Manufacturing equipment
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable plastic construction reduces the need for frequent replacements.
- Energy-efficient LED pilot light minimizes power consumption.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Harmony XB5 Plastic Double Headed Pushbutton SCHZB5AW7A3740 is available for immediate purchase. Ideal for industrial control panels and automation systems.
