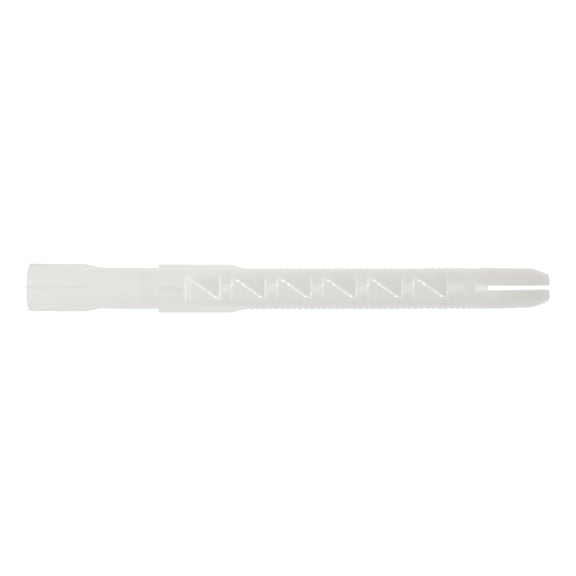

W RD Plastic Frame Anchor | 8mm Diameter | 120mm Length | Natural Color | @Pack of 100 | by Wurth
W RD Plastic Frame Anchor with 8mm diameter and 120mm length is perfect for secure fastening in concrete, brick, and masonry. Designed for high load capacity, this anchor features an anti-rotation lock and expansion in four directions for excellent load distribution. Ideal for outdoor and wet room applications, it ensures reliable performance with minimal environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W RD Plastic Frame Anchor | 8mm Diameter | 120mm Length | Natural Color | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 912808005
Alternatively Known As: Plastic wall anchor, Frame fixing anchor, Nylon anchor, Polyamide anchor, Expansion anchor without collar
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 120 mm
- Max. attachment height: 50 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth: 80 mm
- Type description: W-RD 8, without collar
- Dimensions (H x L x W): 120mm x 120mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent load distribution
- Anti-rotation lock prevents anchor sleeve spinning during installation
- Flexible application with in-place installation for time savings
- Hammer-in stop prevents premature expansion during installation
- High working loads due to even, continuous load transfer across expansion area
- Anchor sleeve made of high-quality polyamide, halogen and silicone free
- Thermally stable from -40°C to +80°C
- Natural colour without additional dyes or coatings
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct drill hole depth and anchor setting for optimal load performance.
Applications
- Suitable for use in concrete, brick, and masonry for secure fastening
- Ideal for outdoor and wet room applications when used with stainless steel screws
- General construction and building fastening needs requiring high load capacity anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free materials reducing harmful chemical impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth W RD Plastic Frame Anchor without collar 8x120mm in natural colour is available for immediate purchase, ideal for construction and building fastening applications.
