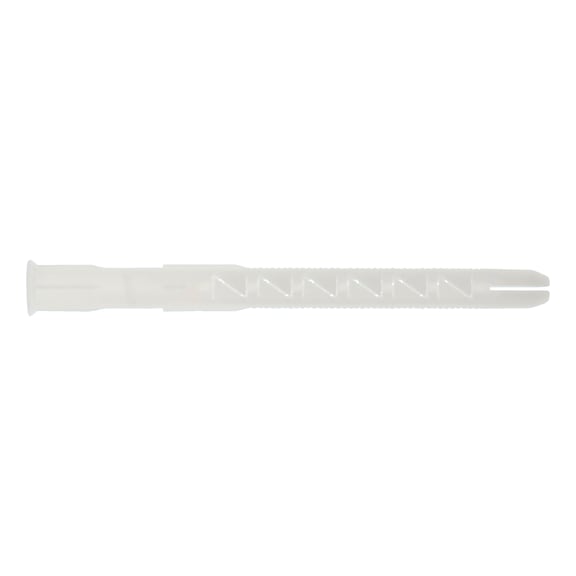

W-RD Plastic Frame Anchor with Collar | 6mm Diameter | High-Quality Polyamide | @Pack of 100 | by Wurth
W-RD Plastic Frame Anchor with Collar is designed for secure anchoring in construction and building applications. With a 6mm diameter and made from high-quality polyamide, it offers excellent load-bearing capacity and thermal stability from -40 °C to +80 °C. Ideal for outdoor and wet room installations, this anchor ensures reliable performance with its strong anti-rotation lock and immediate load-bearing capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-RD Plastic Frame Anchor with Collar | 6mm Diameter | High-Quality Polyamide | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 912806101
Alternatively Known As: Plastic wall anchor, Frame anchor with collar, Nylon anchor, Expansion anchor, W-RD anchor
Technical Specifications
- Anchor diameter: 6 mm
- Anchor length: 60 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 6 mm
- Through-hole diameter in component: 6.5 mm
- Screw diameter: 5 mm
- Drill hole depth: 60 mm
- Type description: W-RD 6, with collar
- Material: High-quality polyamide
- Thermally stable from -40 °C to +80 °C
- Natural colour without additional dyes or coatings
- Dimensions (H x L x W): 60mm x 6.5mm x 6mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent application and high working loads.
- Strong anti-rotation lock prevents spinning during installation.
- Hammer-in stop prevents premature expansion of the anchor.
- Immediate load-bearing capacity saves installation time.
- Can be used outdoors or in wet rooms with stainless steel screws.
- Anchorage via friction locking between anchor sleeve and base material.
Professional Installation Requirements
- Professional installation recommended to ensure correct drill hole size and proper anchor setting for maximum load capacity.
Applications
- Suitable for use in construction and building applications requiring secure anchoring.
- Ideal for outdoor and wet room installations when used with stainless steel screws.
- Used for fastening fixtures to base materials with high load-bearing requirements.
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from high-quality polyamide that is halogen and silicone free.
- Thermally stable material reduces waste due to durability and long service life.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth W-RD Plastic Frame Anchor with Collar 100 PCS in natural colour is available for immediate purchase, ideal for construction and building fastening applications.
