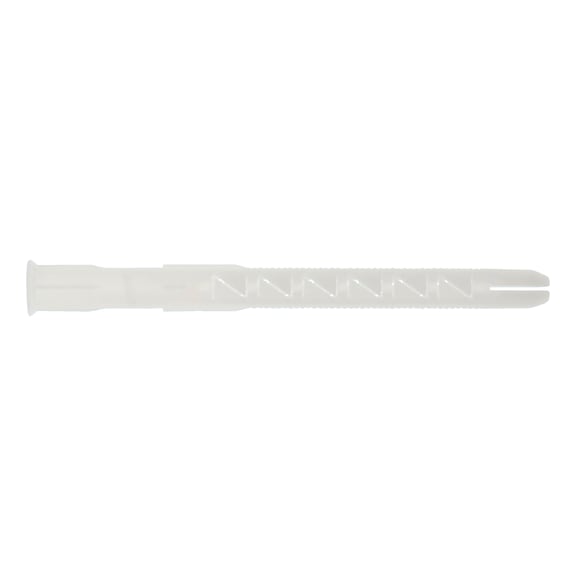

W-RD Plastic Frame Anchor with Collar | 8mm Diameter | Expansion in Four Directions | Anti-Rotation Lock | @Pack of 100 | by Wurth
W-RD Plastic Frame Anchor with Collar is designed for reliable fastening in construction and building applications. With an 8mm diameter and expansion in four directions, it ensures excellent load-bearing capacity and secure anchorage. Ideal for outdoor and wet room use, this anchor features a strong anti-rotation lock and is made from halogen and silicone-free polyamide, making it a durable and environmentally friendly choice.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-RD Plastic Frame Anchor with Collar | 8mm Diameter | Expansion in Four Directions | Anti-Rotation Lock | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 912808105
Alternatively Known As: Plastic wall anchor, Frame anchor with collar, Nylon anchor, Expansion anchor, Wall plug
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 120 mm
- Max. attachment height: 50 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter in component: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth: 80 mm
- Type description: W-RD 10, with collar
- Dimensions (H x L x W): 120mm x 8.5mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent application
- Anti-rotation lock for secure anchorage
- In-place installation facilitates and speeds up installation
- Immediate load-bearing capacity saves time
- Low installation torque prevents spinning of anchor sleeve
- Hammer-in stop prevents premature expansion during installation
- Can be used outdoors or in wet rooms with stainless steel screws
- Anchorage via friction locking between anchor sleeve and base material
- Strong anti-rotation lock and high working loads
- Improved load transmission through even, continuous load transfer
- Anchor sleeve made of high-quality polyamide, halogen and silicone free
- Thermally stable from -40 °C to +80 °C
- Natural colour without additional dyes or coatings
Professional Installation Requirements
- Professional installation recommended to ensure correct drill hole depth and secure anchorage according to manufacturer guidelines.
Applications
- Suitable for outdoor and wet room use with stainless steel screws
- Ideal for fastening in base materials requiring strong anti-rotation and load-bearing capacity
- Used in construction and building fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free polyamide, reducing harmful chemical impact
- Durable and reusable fastening solution reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth W-RD Plastic Frame Anchor with Collar 100 PCS in natural colour is available for immediate purchase, ideal for construction and building fastening applications.
