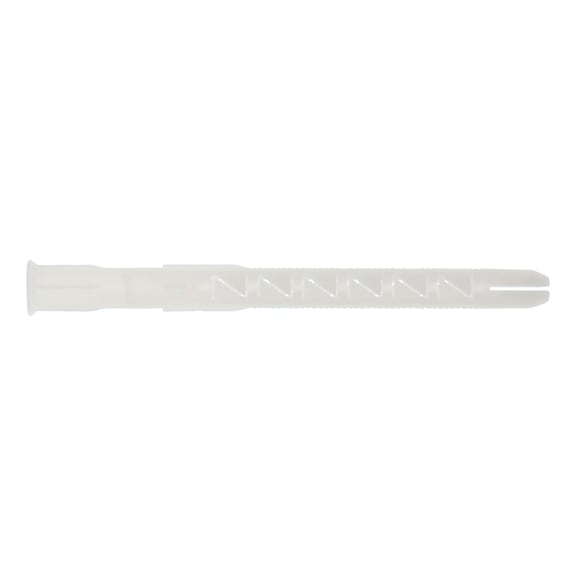

Plastic Frame Anchor with Collar 8mm Diameter Expansion in Four Directions Wurth
The Plastic Frame Anchor with Collar is designed for secure fixing in natural stone, concrete, and solid brick.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth: 60 mm
- Type description: W-RD 8, with collar
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent load distribution
- Strong anti-rotation lock prevents anchor spinning during installation
- Hammer-in stop prevents premature expansion during installation
- Immediate load-bearing capacity for time-saving installation
- Friction locking between anchor sleeve and base material for reliable anchorage
- Thermally stable from -40°C to +80°C
- Made of high-quality polyamide, halogen and silicone free
- Natural colour without additional dyes or coatings
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drill hole size, depth, and proper anchor setting for maximum load capacity.
Applications
- Suitable for fixing in natural stone, concrete, and solid brick
- Ideal for use in outdoor and wet room environments with stainless steel screws
- Used in construction and building applications requiring secure anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free polyamide, reducing harmful chemical impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Wurth standard product warranty against manufacturing defects.
Available Now
Wurth W-RD plastic frame anchor with collar is available for immediate purchase, ideal for construction and building applications requiring secure fixing.
